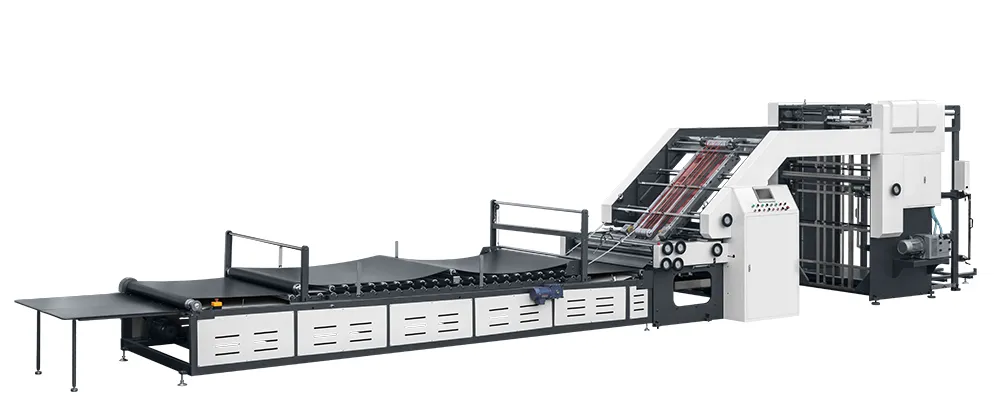

High Quality High Speed Servo Automatic Intelligent Flute Laminating Machine

This machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for
operation, just enter the paper size, machine can automatically finish adjustment.

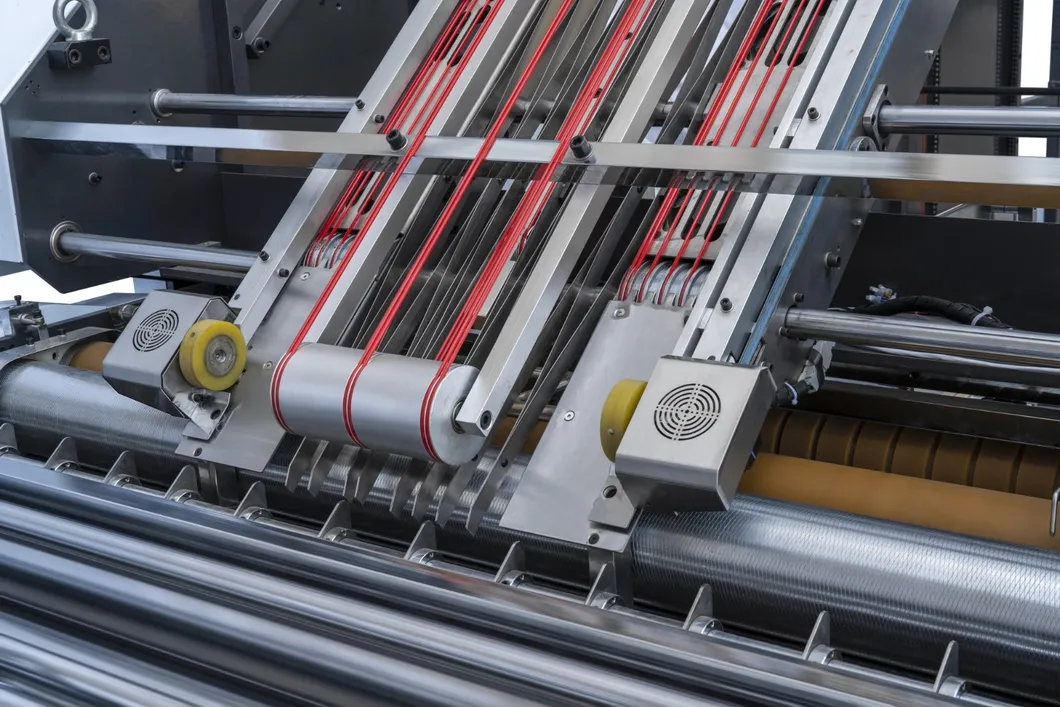

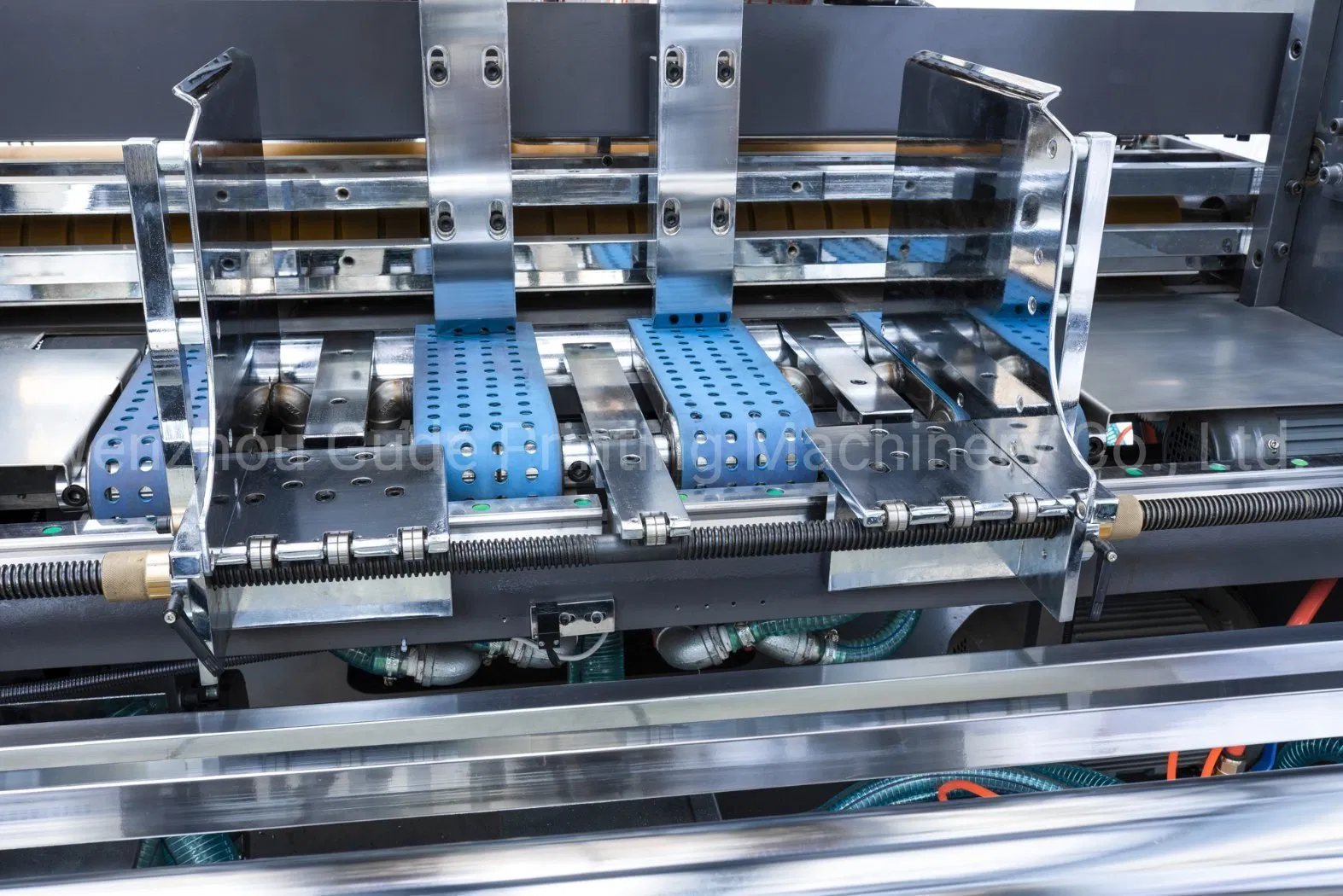

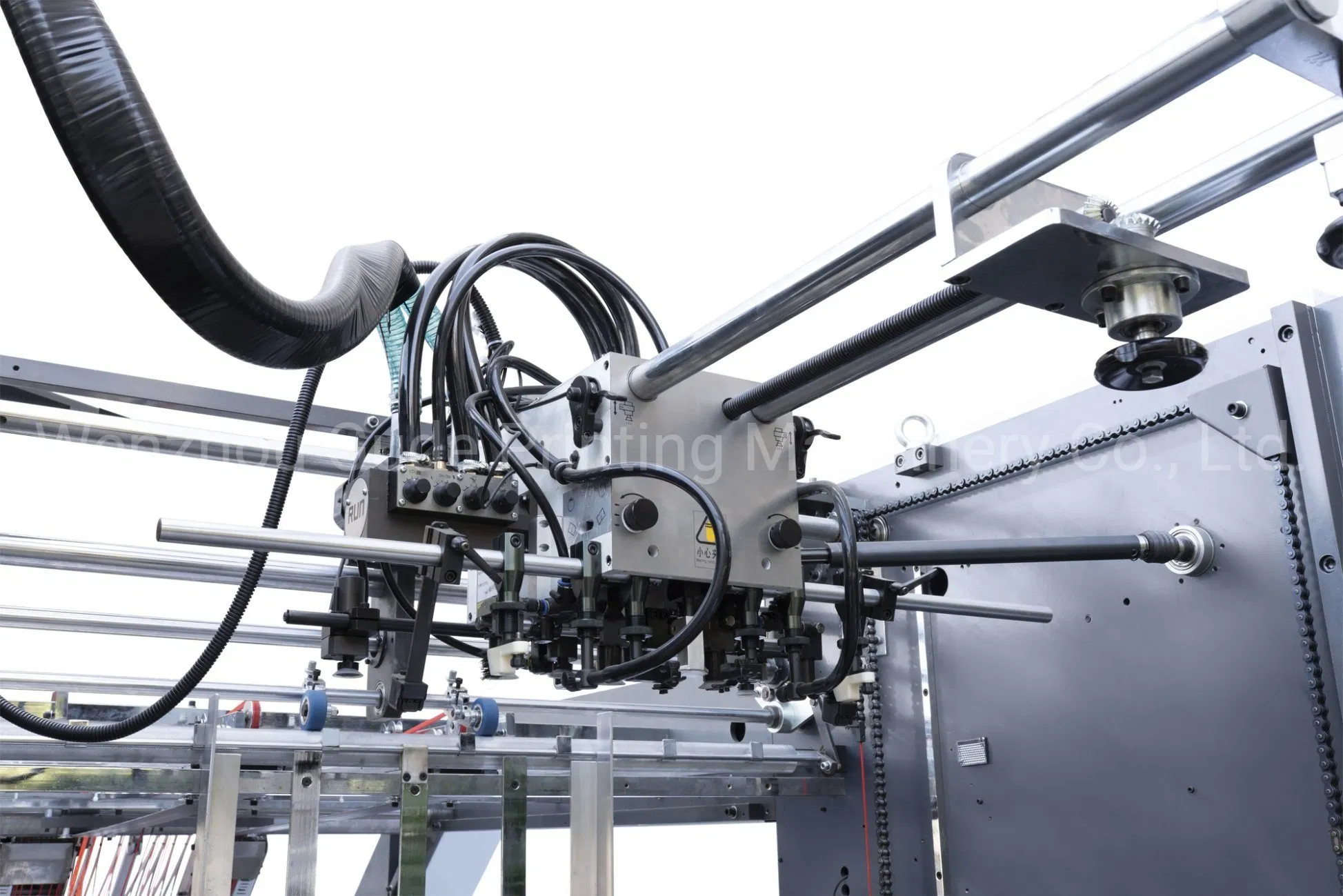

Equipped with high speed dedicated feeder of four-sucking and four-feeding, both paper lifting and feeding nozzle can adjust angle to the paper, to ensure that whether paper is tilted left or right can be delivered rapidly and smoothly.


Use servo motor control system, adjustable suction power, to ensure corrugated paper and cardboard goes out smoothly and simple operation.

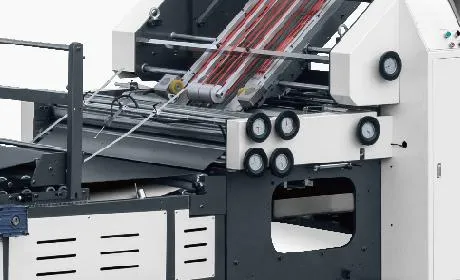

Four sets of pressure for feeding, gluing, laminating and compounding can be adjusted unilaterally or up and down.

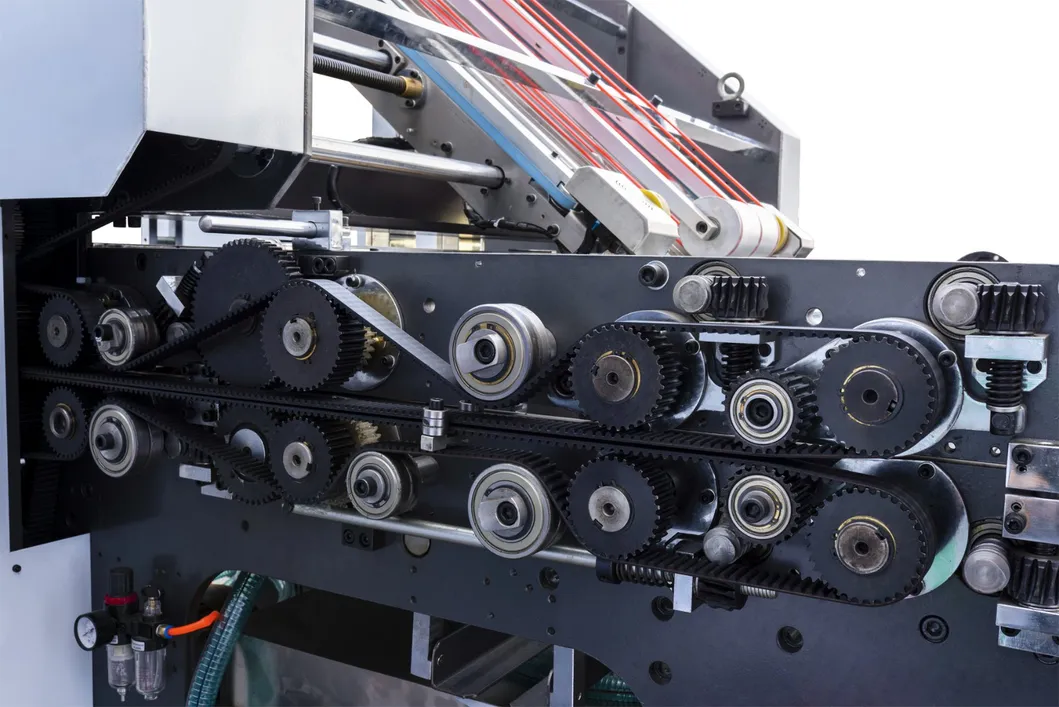

With imported double teeth belt drive and dedicated tension device ensure the drive stable and low noisy.

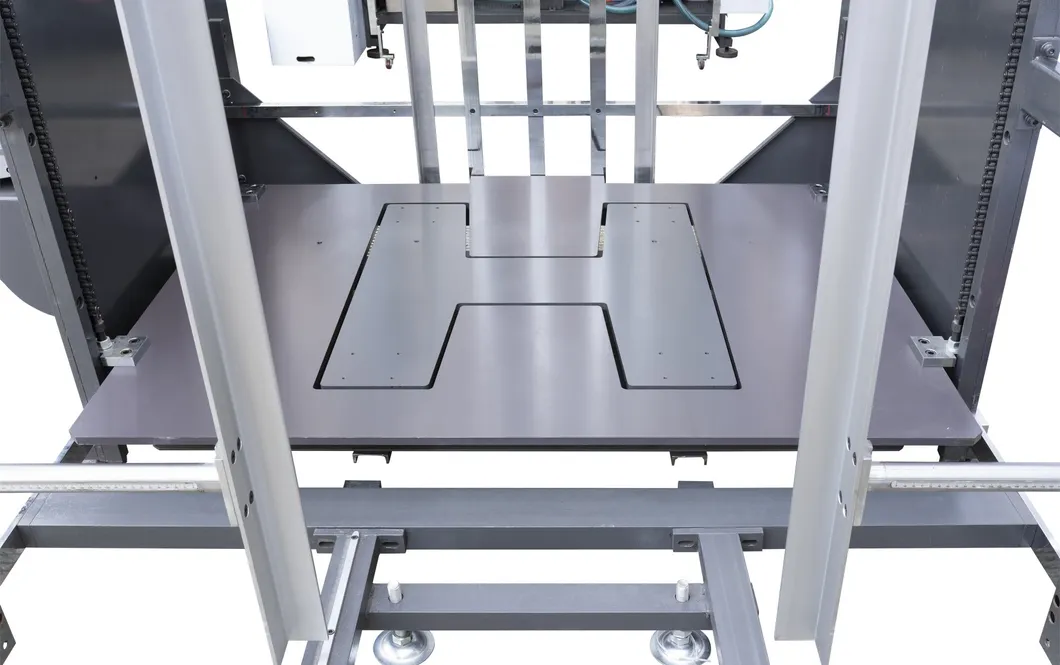

Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of pre-stack paper frame, convenient and efficient.

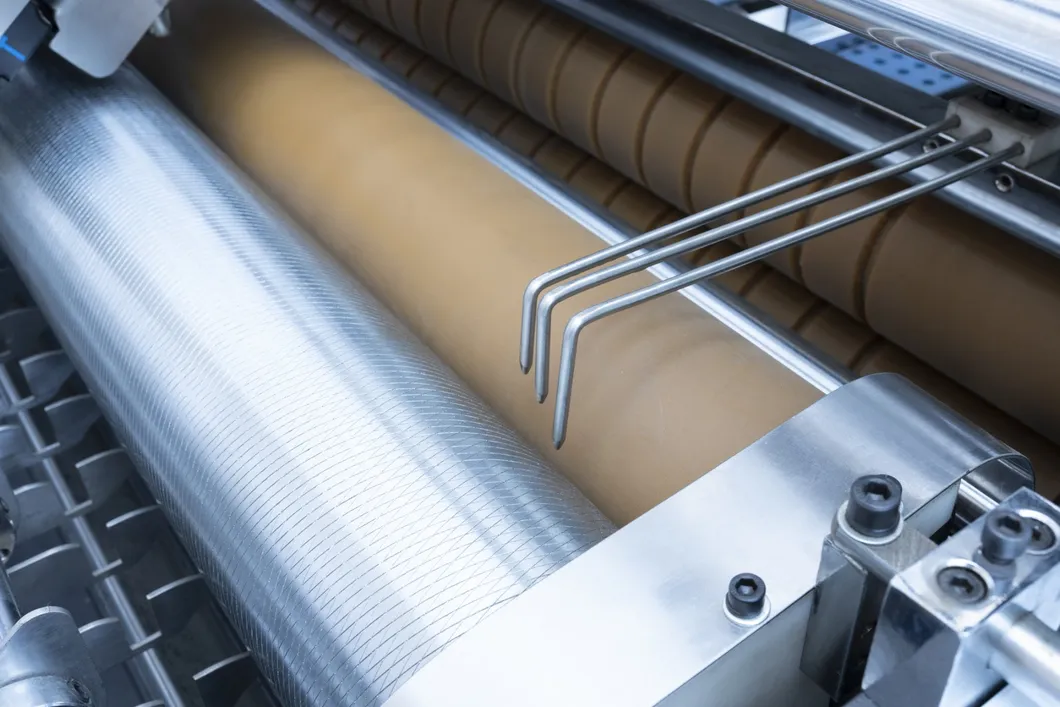

The special design of roller, after narrowly grinding, guaranteed the glue coated evenly. Down roller be cleaned by water roller.


Use multiple sets of photoelectric sensor at bottom paper relative position, control top paper on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.

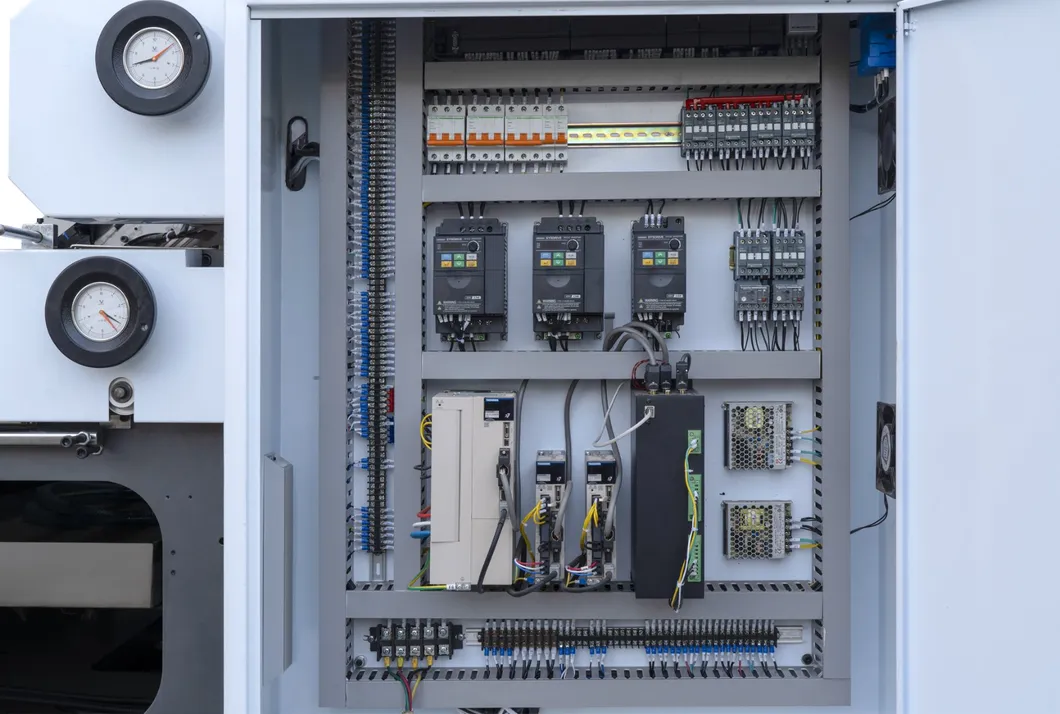

Use man-machine interface and PLC combination, display all the information, such as parameter setting, operating speed, fault detection and warning, etc on the screen . That ensure the machine stability and efficiency.


Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of folder gluer and flute laminating machine in China over 20 years.

Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.

Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.

Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.


1.Our brand "GUDE"  is well-known in our domestic market and over 30 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.

2.Genuine products with excellent quality. Company has always proved the 100% quality.

3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.

4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.

5.Less cost of purchase: We are the manufacturer directly.

6.Attendant customers queries promptly.
