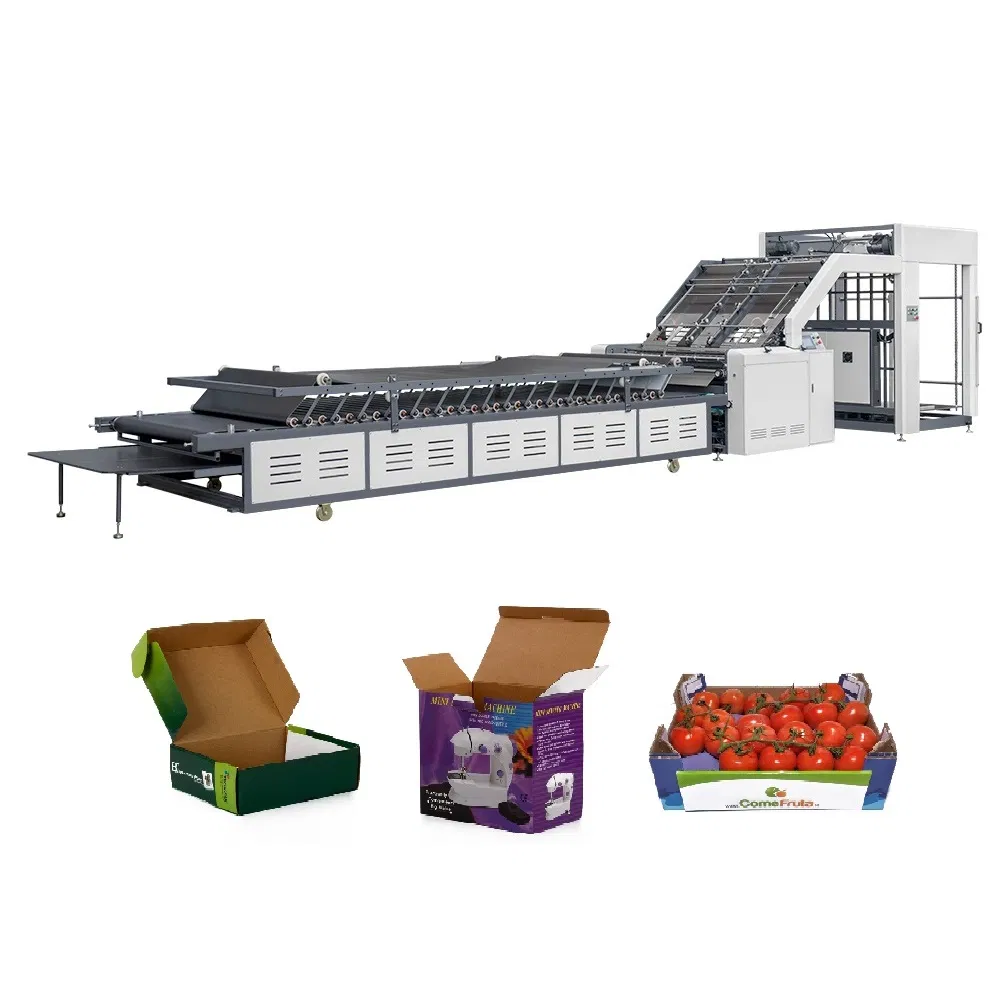

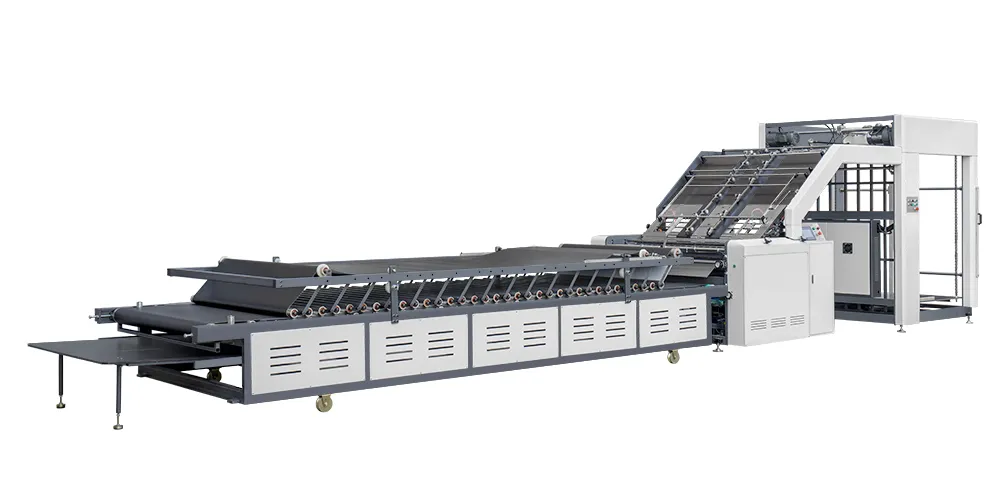

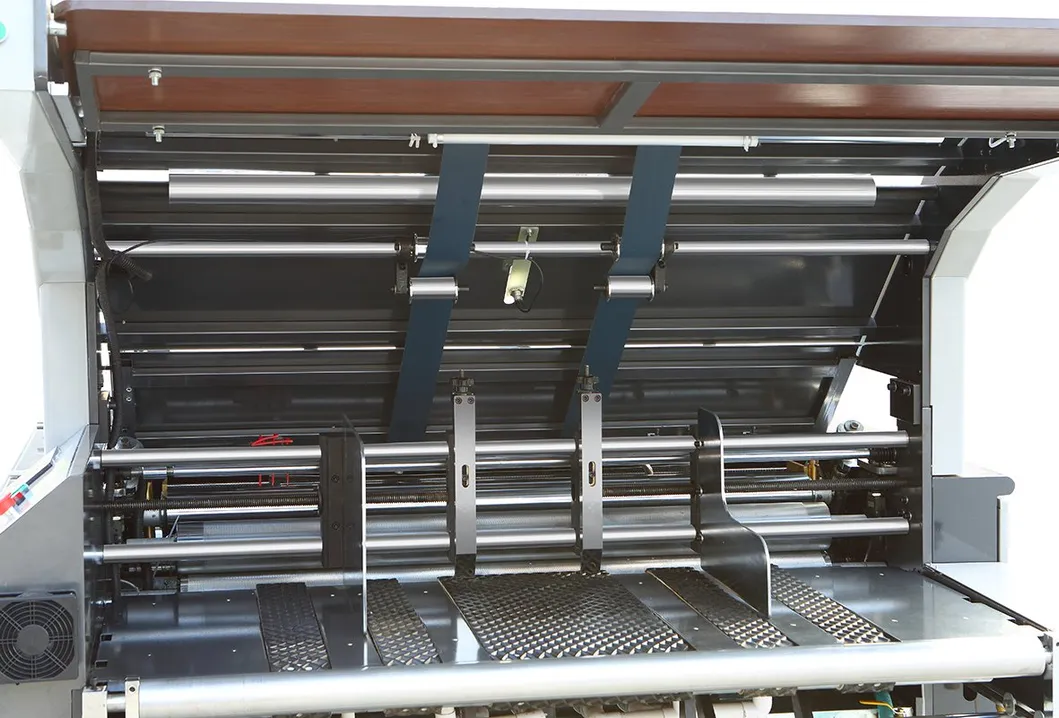

Gfm-1650 Full Automatic Flute Laminating Machine/Corrugated Carton Lamination Machine/High Speed Litho Flute Laminator
Product DescriptionThis machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that ac......
Send Inquiry
Product Description
This machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for
operation, just enter the paper size, machine can automatically finish adjustment.
| MODEL | GFM-1300 | GFM-1450 | GFM-1650 |
| Max Sheet | 1300*1100mm | 1450*1100mm | 1650*1100mm |
| Min Sheet | 400×400mm | 400×400mm | 400×400mm |
| Top Paper Thickness | 200-500g | 200-500g | 200-500g |
| Laminating Speed | 6000sheet/ hours | 6000sheet/ hours | 6000sheet/ hours |
| Fitting Precision | ±1mm | ±1mm | ±1mm |
| Measurement | 14.2×2.37×2.68M | 14.2×2.37×2.68M | 14.2×2.37×2.68M |
| Machine Power | 22KW | 22KW | 22KW |
| Bottom Paper Thickness | B,C,D,E,<7mm corrugated board | ||
| POWER | 12KW/380V | 12KW/380V | 15KW/380V |
Related products:
| Flute Laminating Machine | Semi-Automatic Corrugated Paperboard Laminating Machine | Corrugated Cardboard Flute Lamination Machine |
| Automatic Flute Laminating Machine | Automatic Cardboard Laminating Machine | Corrugated Paperboard Laminator Machine |
| Semi Automatic Flute Laminating Machine | Carton Board Automatic Flute Laminating Machine | Automatic Pile Turner And Stacker Machine |
| High Speed Automatic Flute Laminating Machine | Automatic Sheet To Sheet Laminating Machine | Flute Laminating Machine Spare Parts |
| Servo Automatic Flute Laminating Machine | Semi Automatic Flute Lamination Machine | Film Laminating Machine |
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of folder gluer and flute laminating machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
1.Our brand "GUDE" is well-known in our domestic market and over 30 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.
2.Genuine products with excellent quality. Company has always proved the 100% quality.
3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.
4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.
5.Less cost of purchase: We are the manufacturer directly.
6.Attendant customers queries promptly.
