Product Description

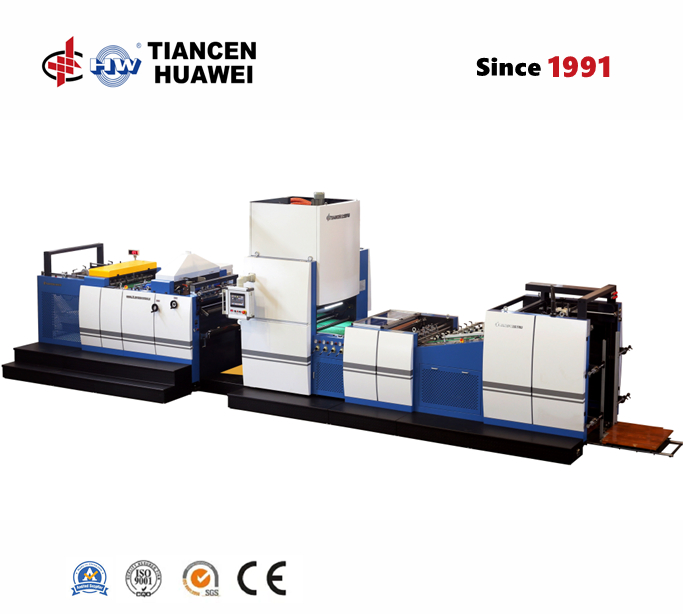

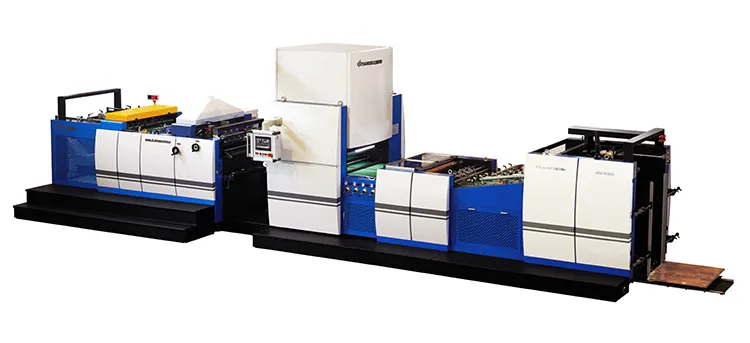

Fully Automatic Hot Knife Vertical type Multifuction Film Laminating Machine

Basic Configuration:

1.High speed feeder: Eight suction nozzles achieve high speed and high precision, Standard configuration with pre-pile unit

2.Powder removing: double sets of hot pressing roller powder remove), it is not necessary to maintain specially and clean inner, keeping powder removing effect in a long time.

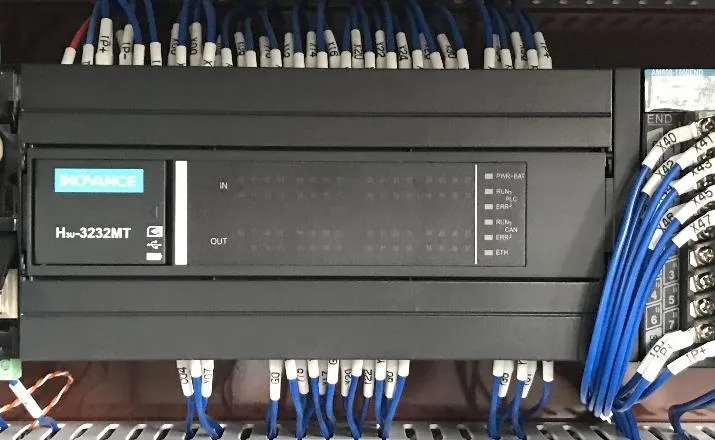

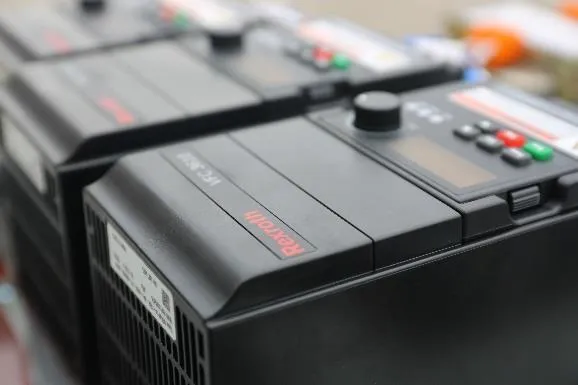

3.Glue Coating and pressure roller: The machine has two sets of separate circulating temperature controller beside the laminator. Main pressure steel roller is heated by oil out of the machine. So the temperature in roller is uniform and accurate. 800mm diameter oil circulating heating glue drying roller, 380mm diameter Oil circulating heating main pressing steel roller, Ceramic anilox roller coating glue, Inovance PLC, Rexroth Frequency converter

4.Product sheet cutting methods: Use hot knife to cut film, it is suitable for PET/OPP film and every kinds of metal film, after that the products will be separated by shearing device, all the processes make your products perfectly.

Hot knife to cut film, Suitable for PET film, Make products perfectly.

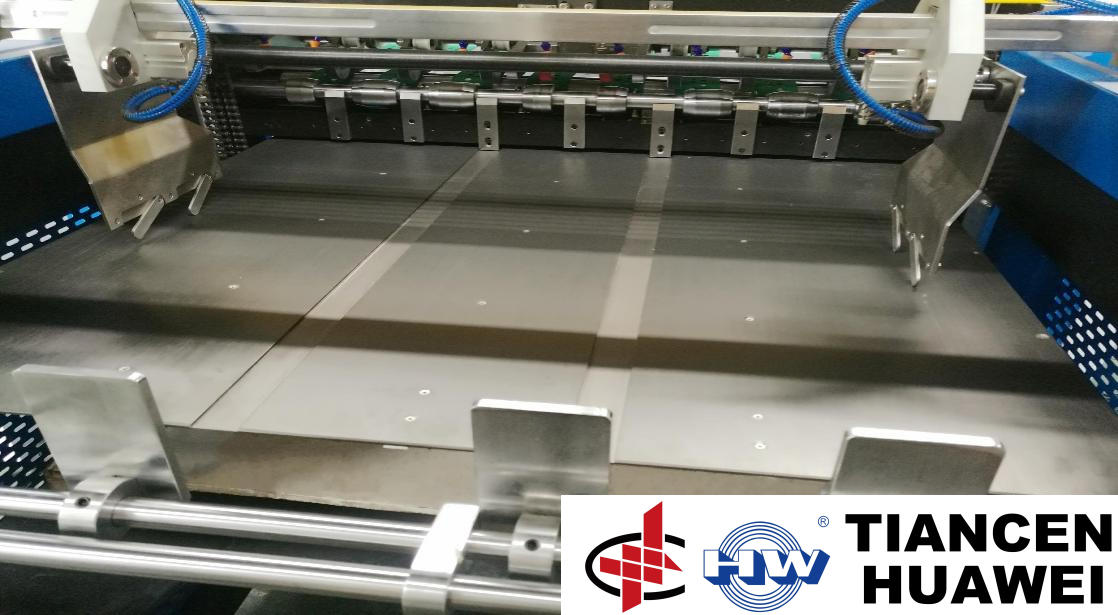

5.Stacker: Non-stop delivery switching device, during high speed running can turn on superposed mode matched with wave pressed device make delivery smoothly.

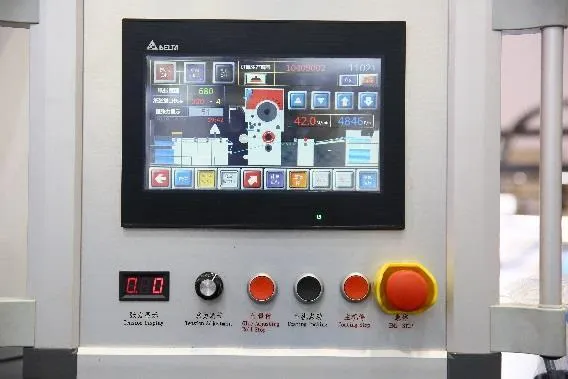

6.Advantage of equipment: It is suitable for water-based glue, oil-based glue, non-glue film and thermal film. showed in human-computer interface.

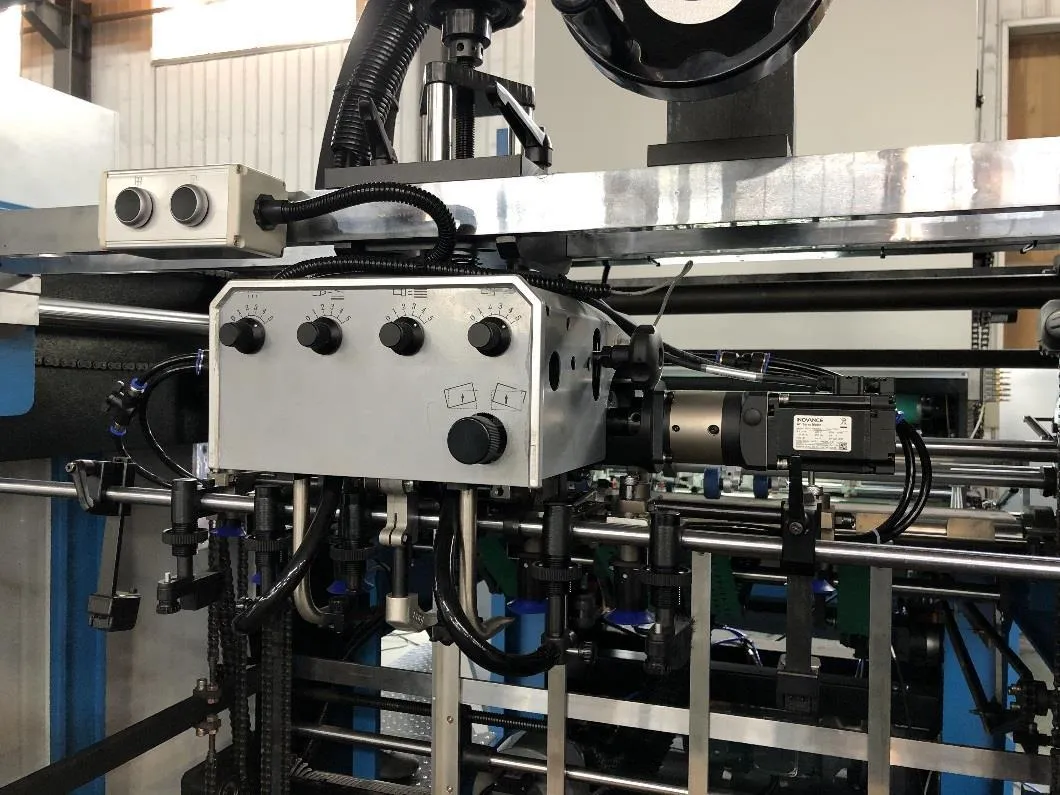

Automatic feeder

Shaftless servo Feeder,

Feeder CNC automatic positioning.

High speed feeder, Max. feeding speed 12,000 sheets/h, eight suction nozzles achieve high speed and high precision.
Sheets Front guide and sheets drawing control guide with servo technology make overlap during ±2mm in high speed running.

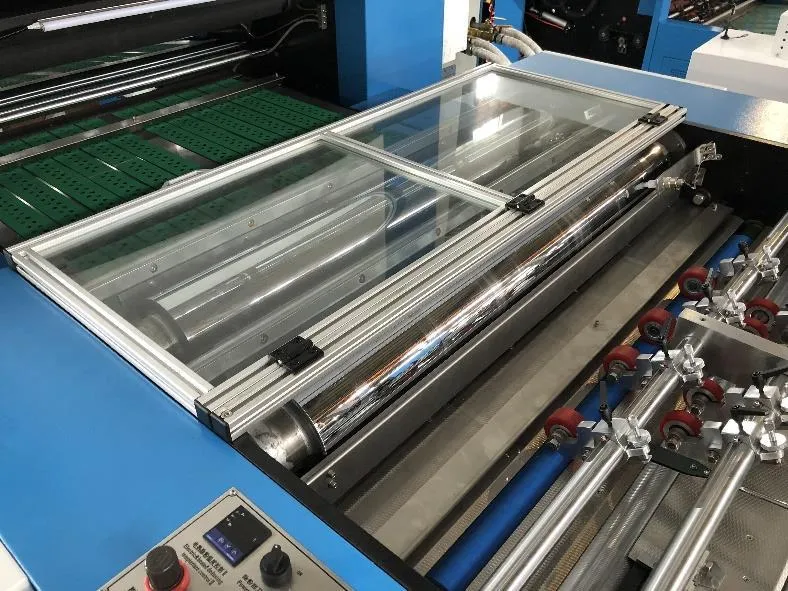

Hot pressing powder removing roller, use chrome plating surface treatment steel roller, the effect of powder removing is guaranteed, and can flat rough paper. Heating the mirror roller automatic constant, can maintain the set temperature and with stable effect of powder removing.

Main technical parameters	RFM-130MC, HOT KNIFE
Max. sheet size	W1300×L1450mm
Min. sheet size	W300×L300mm
Max. mechanical speed	100m/min, 11000sheets/hour
Laminating speed	20-100m/min
Paper thickness	105-500gsm
Piling height	1300mm
Stacker piling height	1300mm
Total power	88kW (380V, AC3φ, 50Hz) (normal working power: 28-38kW)
Overall dimension	L 14300 × W 2380 × H 3000 mm
