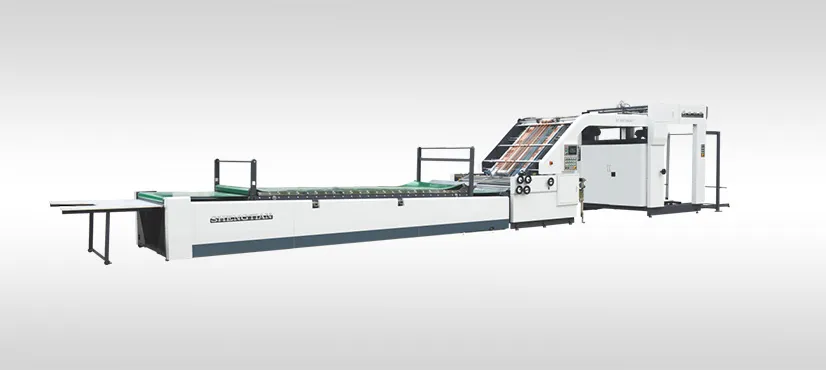

Full Automatic Laminator Machine
Automatic High Speed Flute LaminatorThe high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the ......
Send Inquiry
Product Description

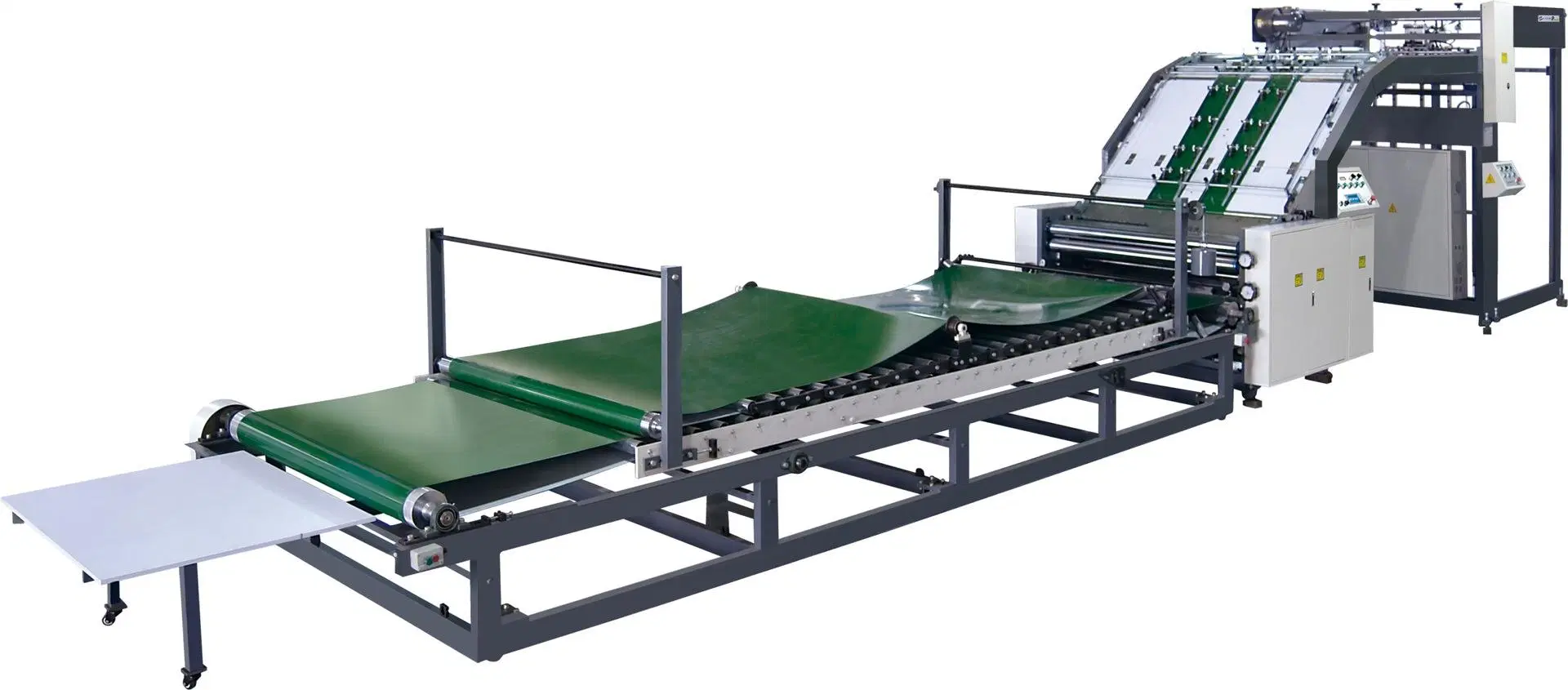

Automatic High Speed Flute Laminator
The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine can be adjusted by itself.
Machinery Parameters:
Machinery Feature:
Product Pictsures:
A.Fedder feeding part:
B. Bottom feeding part:
C. Electric part:
Exporting:
For ship packing: The packing of small machines could be confirmed to be exported with wooden case in a strong durable.
Egypt Exhibition:
SGS
The high speed flute laminating machine is suitable for the stick of paper and corrugated board. The motion control system is perfectly integrated with the servo correction system. Using the relative position of multiple sets of photoelectric induction paper, the servo motor on both sides of the control paper is independently compensated, and the position of the bottom paper is tracked by the paper. Make the paper and the bottom paper accurately positioned. The machine is easy to operate and simply input the size of the paper, the machine can be adjusted by itself.Machinery Parameters:
| Model | SCLA-1300 | SCLA-1600 | SCLA-1450 | SCLA-1650 |
| Max size | 1300 * 1200 | 1600 * 1200 | 1450*1450mm | 1650*1650mm |
| Min size | 400 * 400 mm | 400 * 400 mm | 450*450mm | 450*450mm |
| Applicable paper | 150-800g/m2 | 150-800g/m2 | 150-800g/m2 | 150-800g/m2 |
| Bottom paper | A-F corrugated board, ≤10mm | A-F corrugated board, ≤10mm | A-F corrugated board, ≤10mm | A-F corrugated board, ≤10mm |
| Speed | 0-120m/min | 0-120m/min | 0-120m/min | 0-120m/min |
| Sticker accuracy | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm |
| Power | 10Kw | 10Kw | 33Kw | 38kw |
| Machine dimension | 10M *2M *2.4M | 10M *2M *2.4M | 22.5M * 2.2M * 2.85M | 22.5M * 2.2M * 2.85M |
Machinery Feature:
- The vacuum suction-type feeding system can lead the paper accurately into the machine;
- Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
- New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
- Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
- Automatic gluing, and the glue can be used circulatory, avoid glue waste.
- Roller design scientifically, avoid glue fly out when the speed is high.
- Pressure rollers adopt one side adjustment, convenient and fast.
- Rocker controls wash roller's fluctuation, easy cleaning.
- Counter designs scientifically, easy recording the amount you have been worked
Product Pictsures:

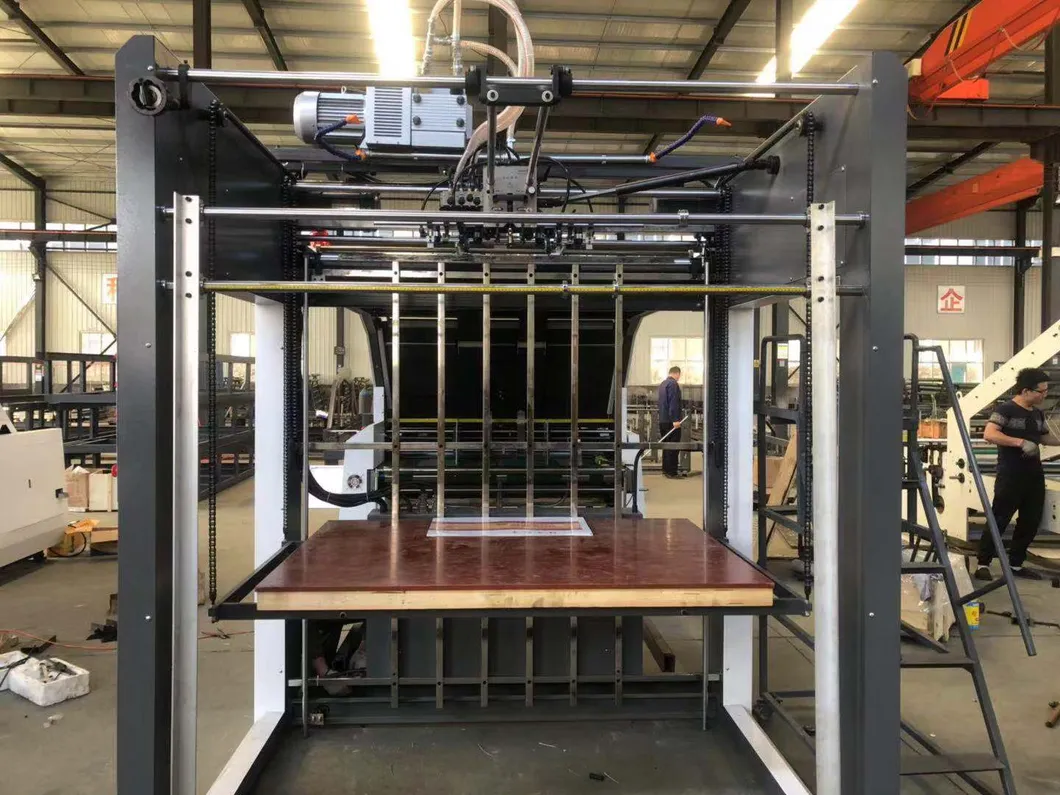

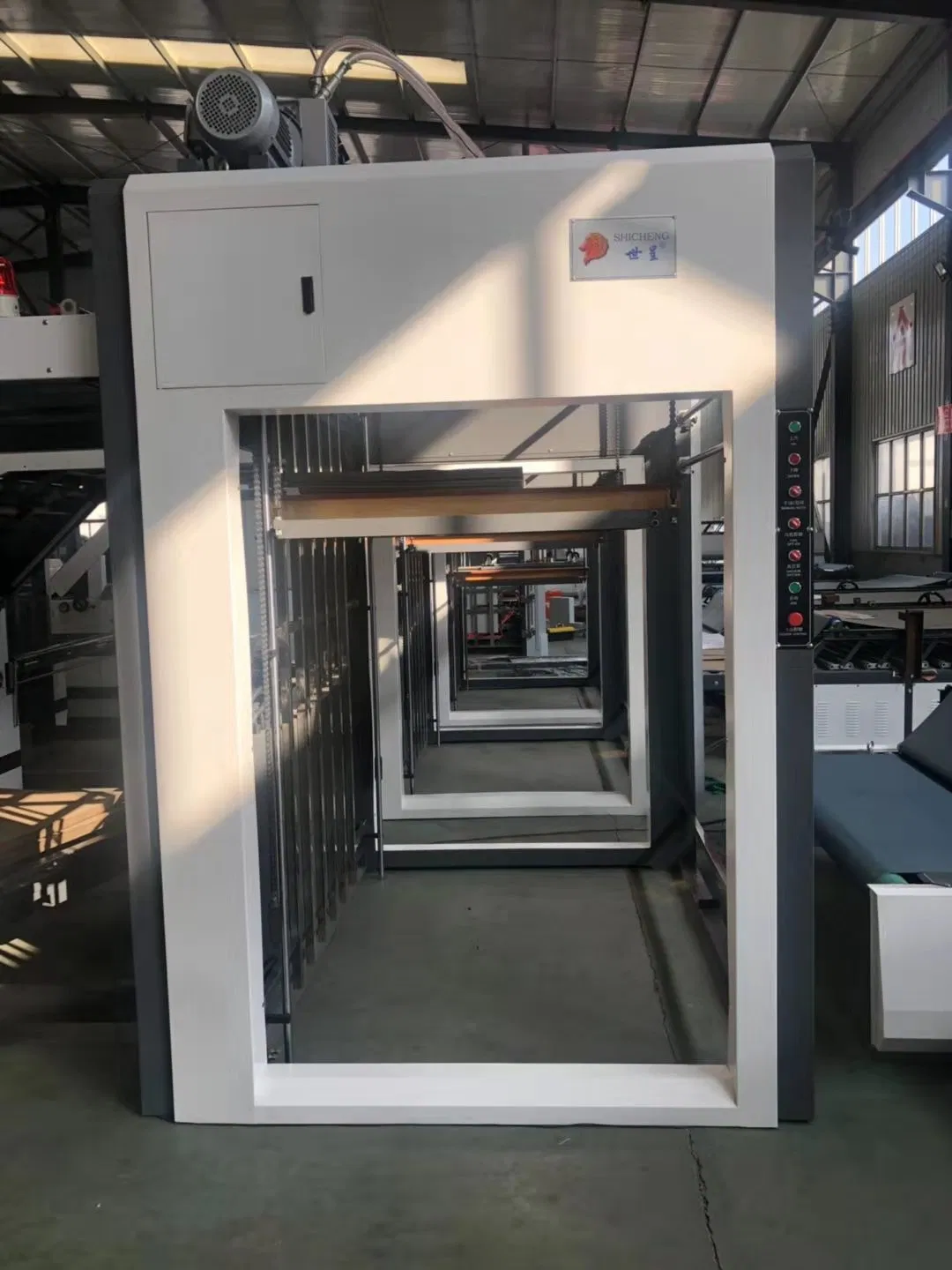

A.Fedder feeding part:

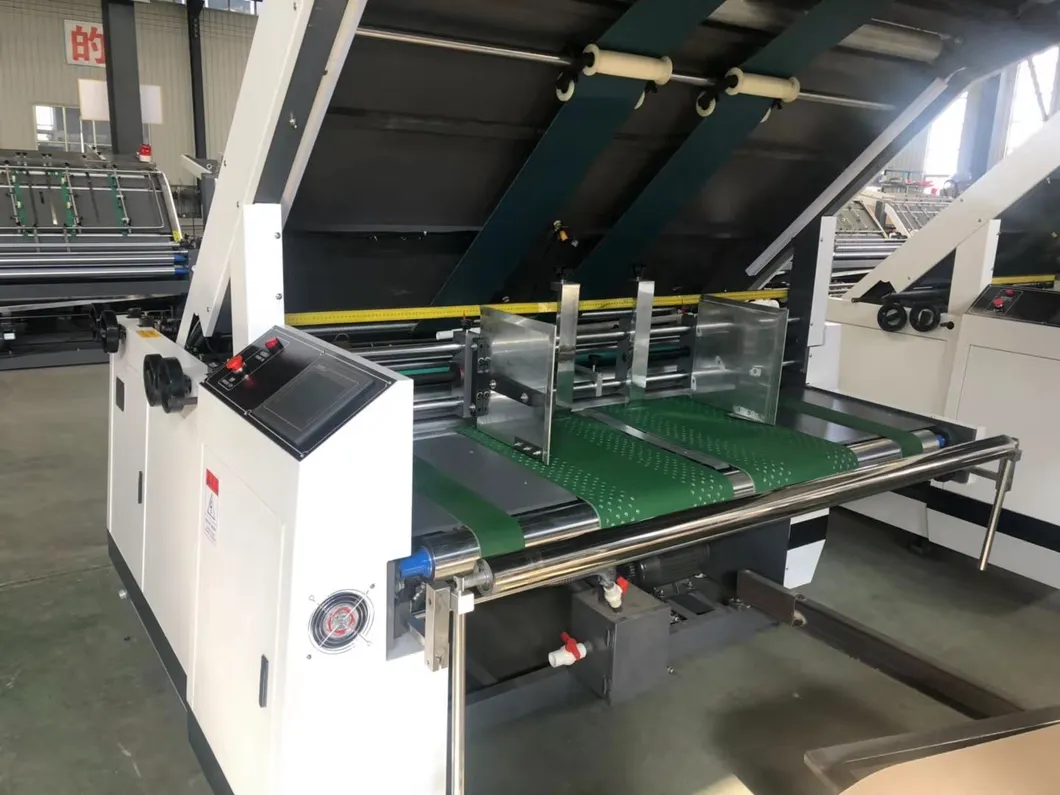

B. Bottom feeding part:

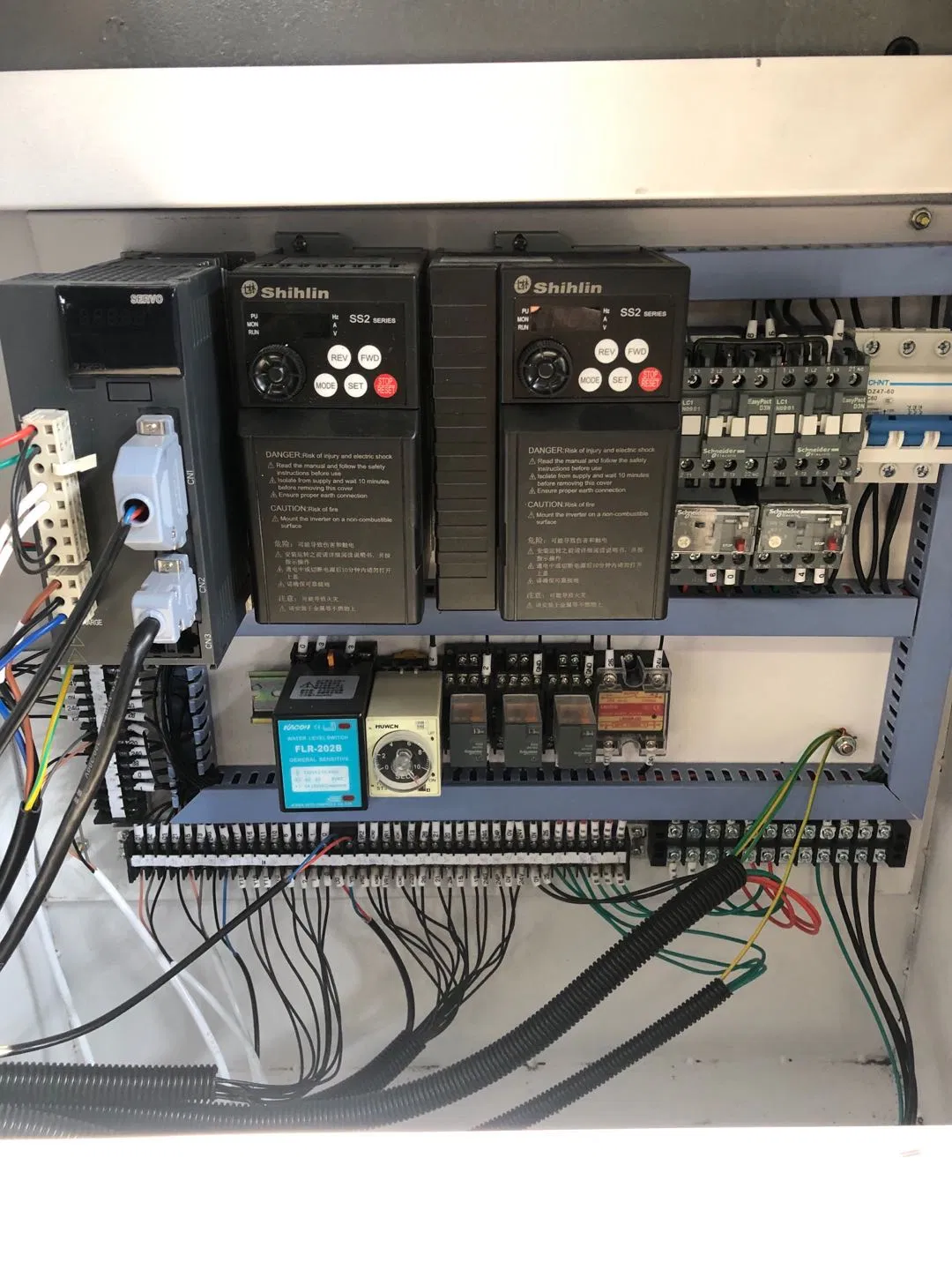

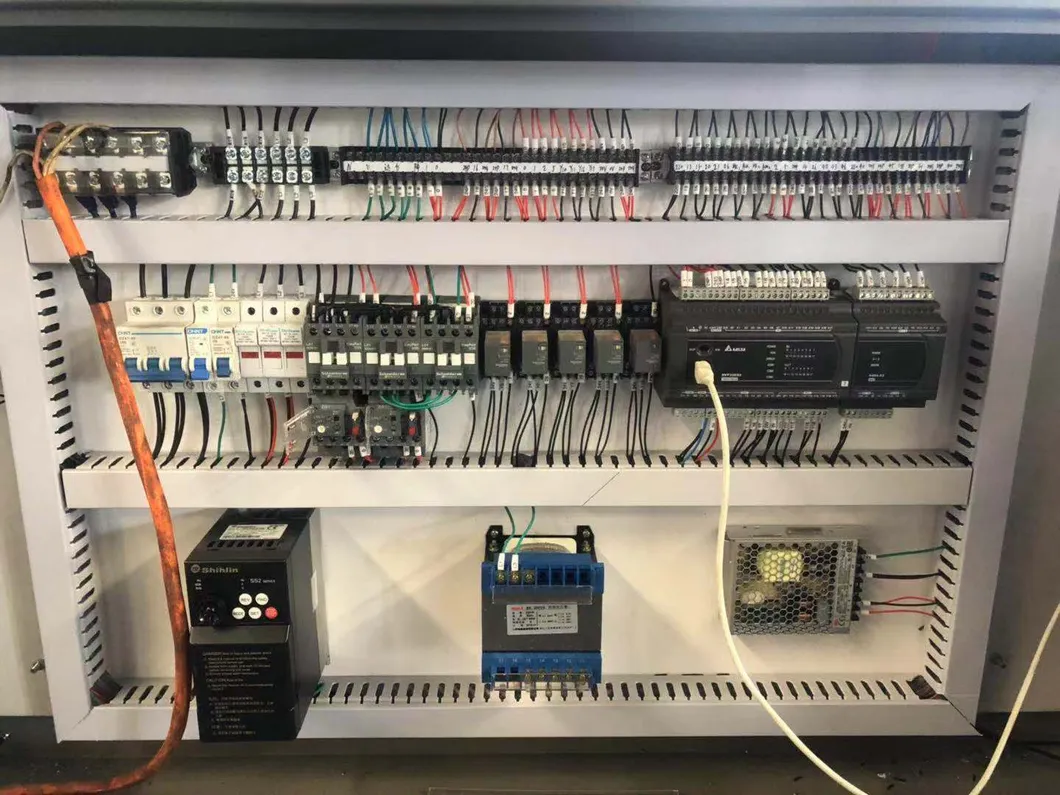

C. Electric part:

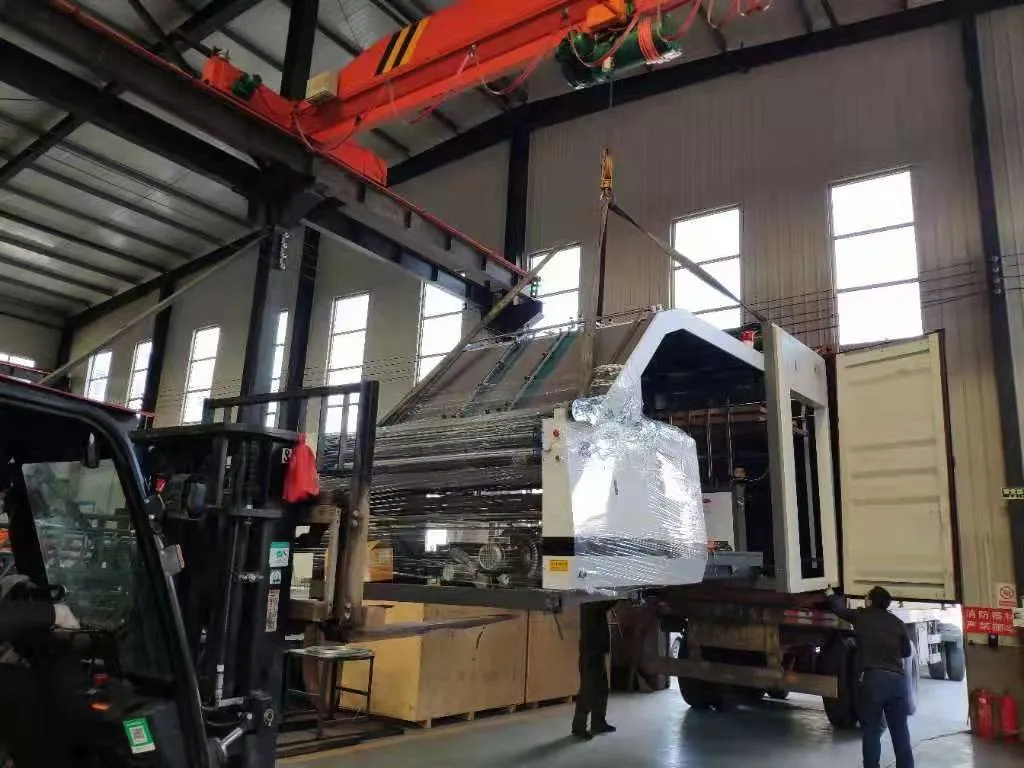

Exporting:
For ship packing: The packing of small machines could be confirmed to be exported with wooden case in a strong durable.
Another In order to be waterproof, we usually use bubble film to wrap machine. Also We can handle shipping for customers too.
History Exhibition:
Shanghai Exhibition:
Egypt Exhibition:

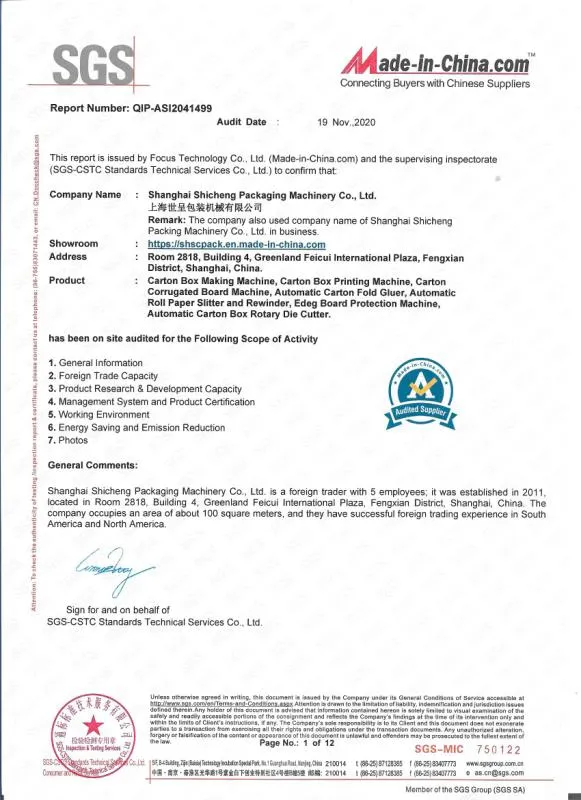

SGS
