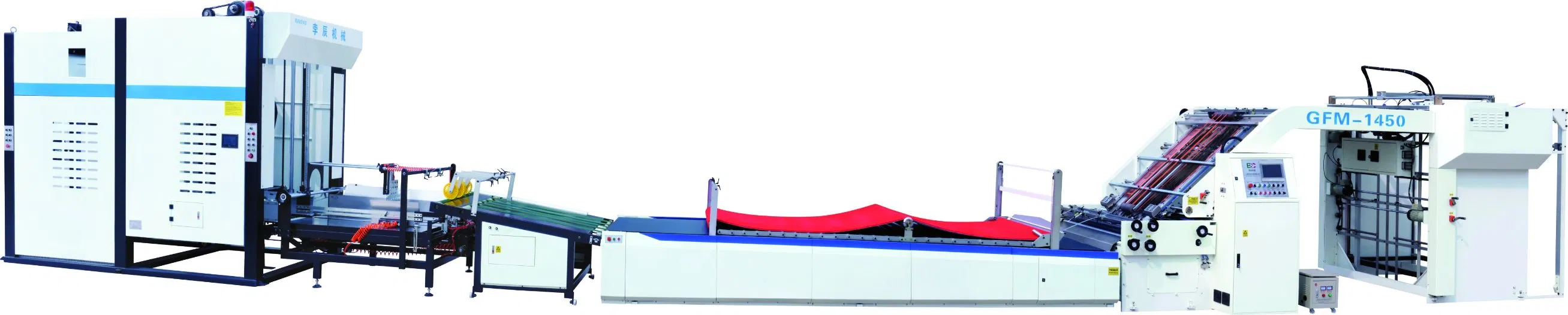

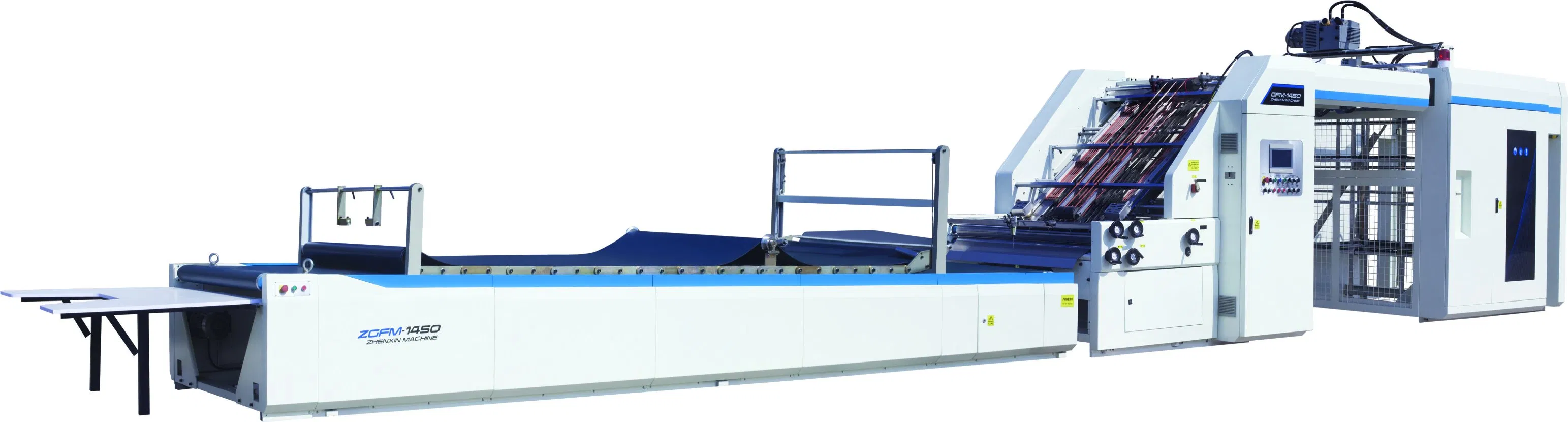

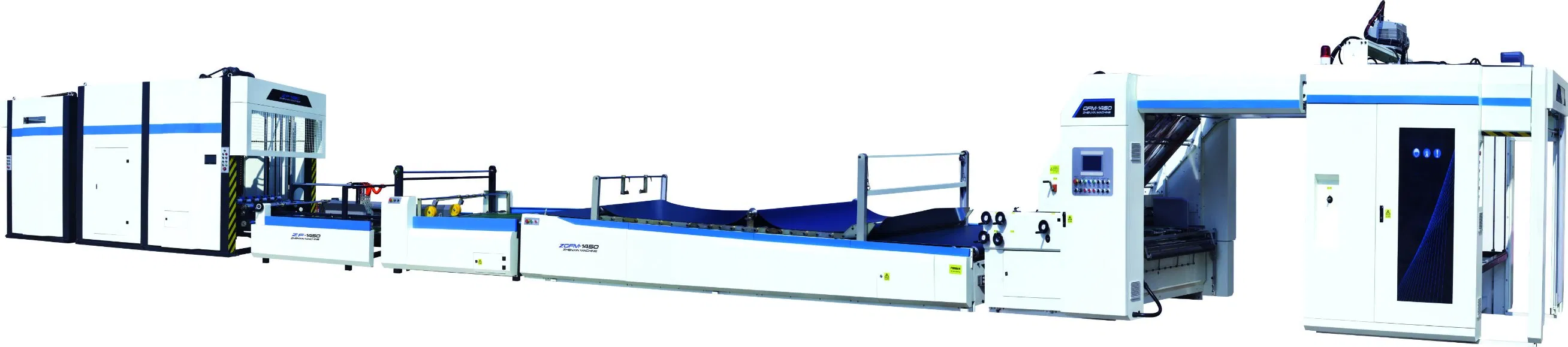

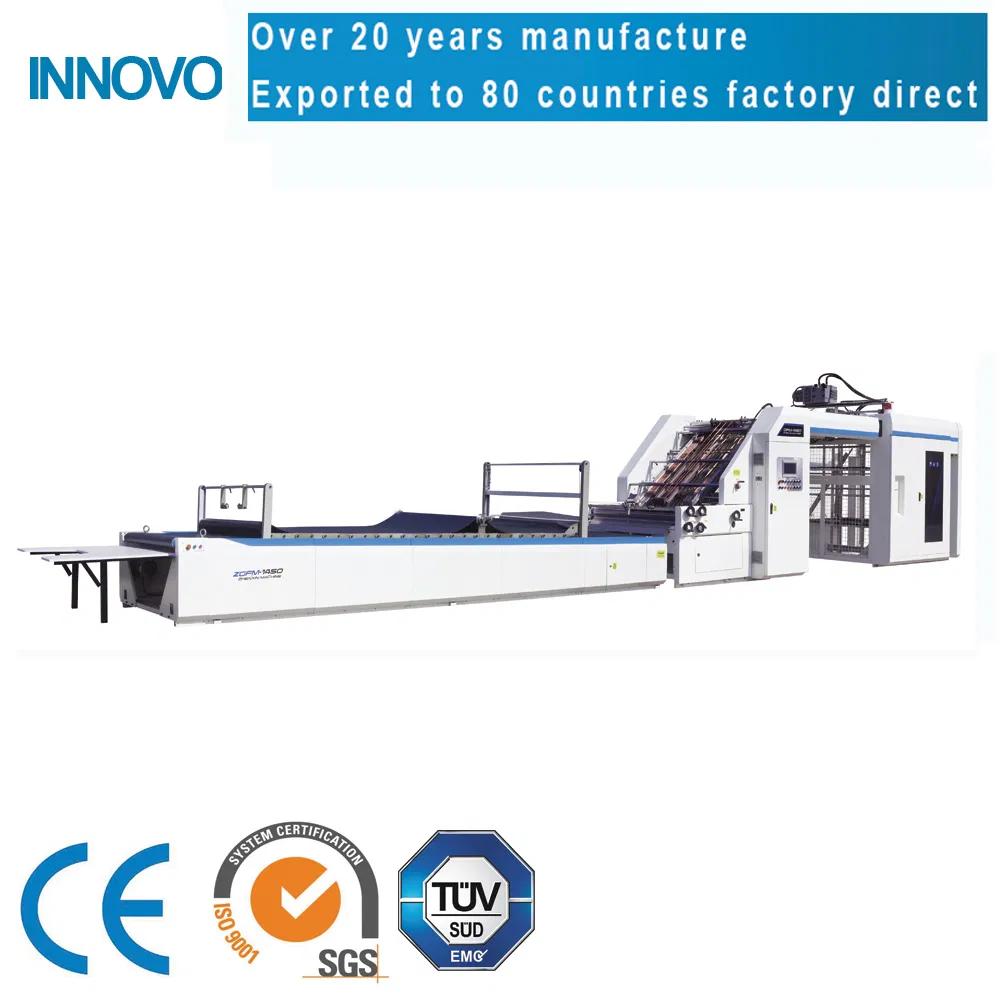

Economy Higher Speed Flute Laminating Machine

Product Description

Product description
1.1 Function:
The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

1.2 Structure:
A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.
B. Bottom feed: It can send 0.5~1Omm paperboard from below.
C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.

1.3 Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

1.4 applicable materials:
Paste paper --- 150 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.

Structural features:
Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

Computerized high-speed fitting, up to 12,000 pieces per hour.

Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

utomatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.

Parameters:

Model	ZGFM1450	ZGFM1650
Max size	1450*1450mm	1650*1650mm
Min size	450*450mm	450*450mm
Paper	150-800g	150-800g
Bottom paper	≤10mm ABCDEF corrugated board	≤10mm ABCDEF corrugated board
Max speed	12000pcs/h	12000pcs/h
Power	25kw	27kw
Stick accuracy	±1.5mm	±1.5mm

TRANSMISSION:
With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.

,.
PRE-STACK PART:
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.

CE,,,.PLC,,,,.
ELECTRICAL SYSTEM:
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.

Some parts list

Name	Picture	Origin	Brand
Touch screen		China	Wei Luntong
Servo motor		Japan	Yaskawa
Main motor		Germany	Siemens
Linear Guide Slides and Guides		Taiwan	HIWIN
Paper feeder Reducer		Germany	Siemens
Air-controlled electromagnetic reversing valve		Japan	SMC
Before-after Press motor		China	Shanteng
Press motor		Germany	Siemens
Main machine width adjustment motor		China	Lide
Feeder widened motor		China	Lide
Feeder motor		China	Lide
Vacuum pressure pump		China	Tongyou
Chain		Japan	TSUBAKI
Relay		Japan	Omron
Photoelectric switch		Taiwan	Yangming
Solid-state relay		Taiwan	yangming
SQP		Japan	Omron
Water level relay		Taiwan	Yangming
Contactor		France	Schneider
PLC		Germany	Siemens
Servo drivers		Japan	Yaskawa
Frequency convertor		Japan	Yaskawa
Potentiometer		Japan	TOCOS
Rotary encoder		Japan	Omron
Button		France	Schnerider
Brake resistor		Taiwan	Tianyi
Motion controller		USA	Parker
