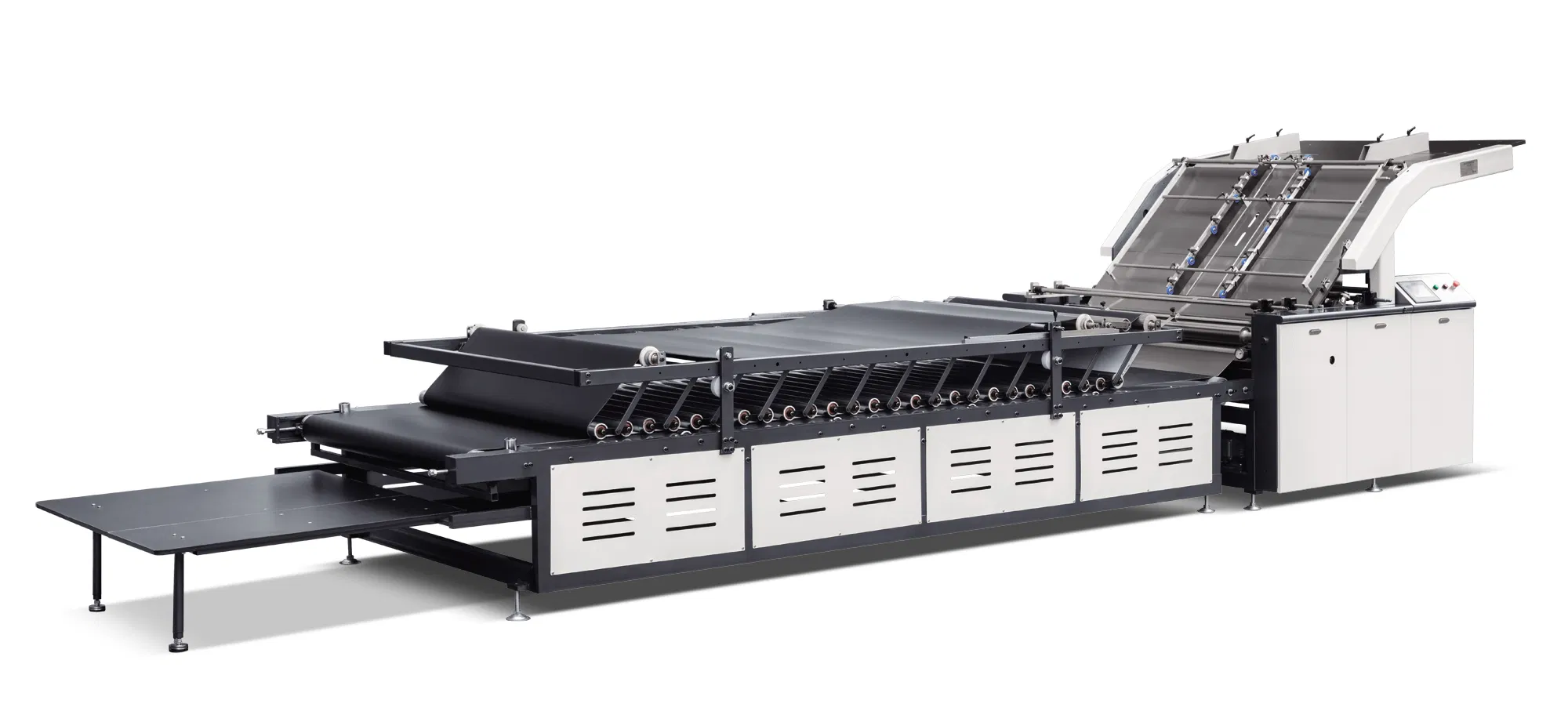

Competitive Price Semi-Auto Carton Box Lamination Machine
Product DescriptionThis machine use bottom sheet automatic send by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.Us......
Send Inquiry
Product Description
This machine use bottom sheet automatic send by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.
Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

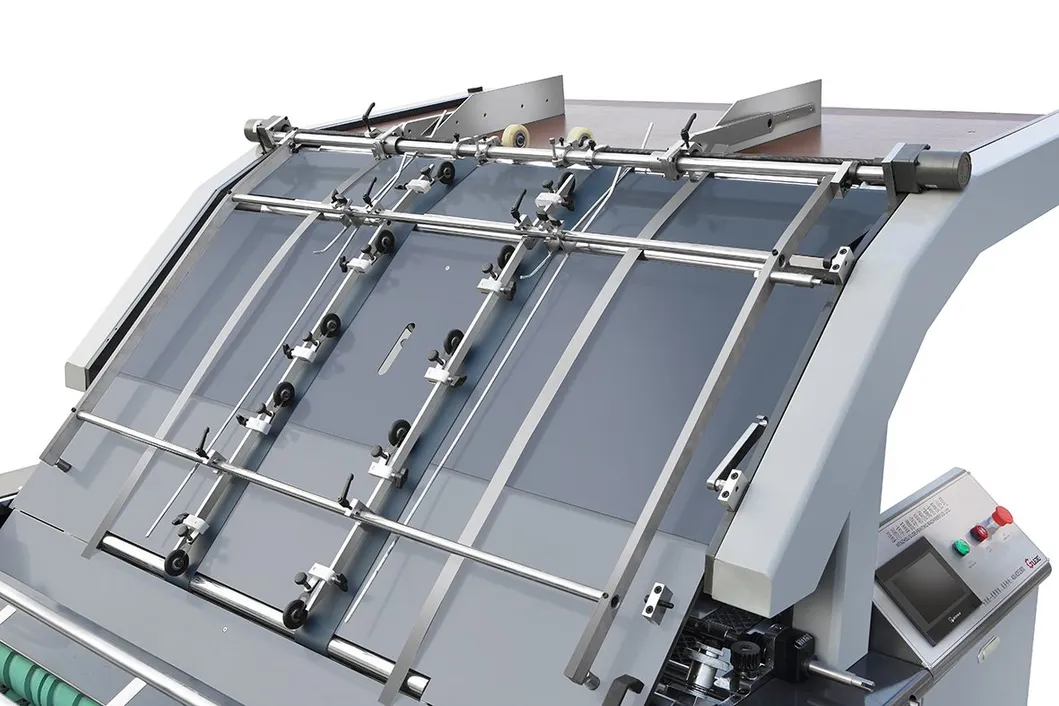

The humanized design that manually feeding from the front makes delivery more easier and efficient.

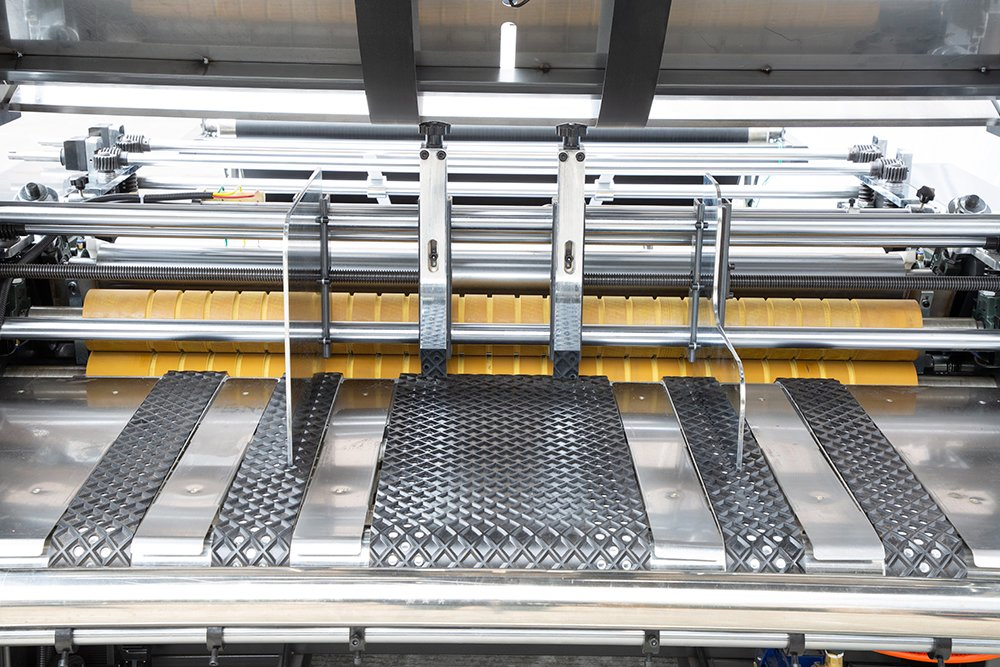

Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

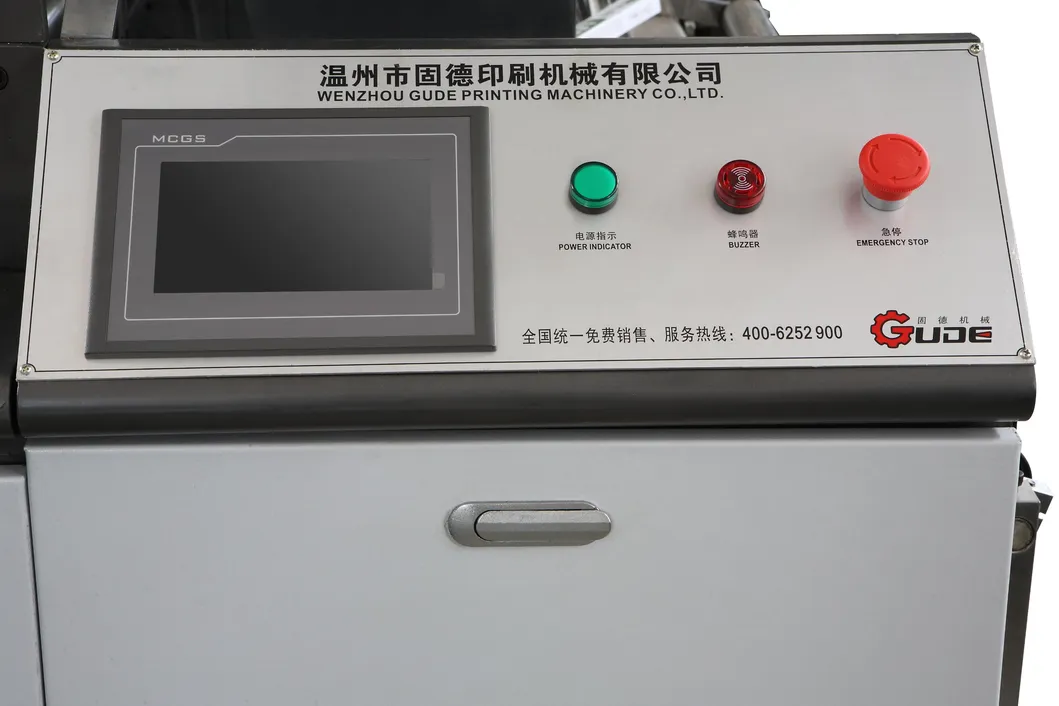

Machine use touch-screen PLC control system, the circuit system is stable, and can automatically display the failure alarm.

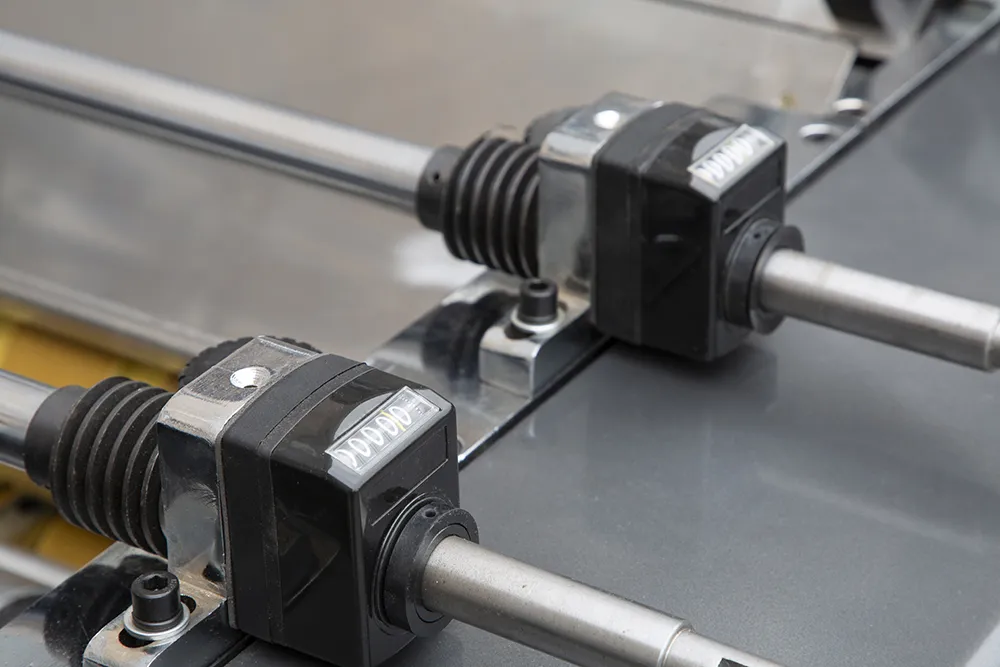

Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data, easy adjustment when change the size of bottom paper.
| Model | GFM-1300 H | GFM-1450 H |
| Max Sheet | 1300*1100MM | 1450*1100MM |
| Min Sheet | 320*320MM | 320*320MM |
| Top Paper Thickness | 200-500G | 200-500G |
| Laminating Speed | 90M/Min | 90M/Min |
| Fitting Precision | ±1MM | ±1MM |
| Measurement | 8.5*1.97*1.85M | 8.5*2.12*1.85M |
| Machine Power | 7.8KW/380V | 8.5KW/380V |
| Bottom Paper Thickness | A,B,C,E,F<7MM Corrugated Board | |
| Weight | 4.8T | 5.3T |
Related products:
| Flute Laminating Machine | Semi-Automatic Corrugated Paperboard Laminating Machine | Corrugated Cardboard Flute Lamination Machine |
| Automatic Flute Laminating Machine | Automatic Cardboard Laminating Machine | Corrugated Paperboard Laminator Machine |
| Semi Automatic Flute Laminating Machine | Carton Board Automatic Flute Laminating Machine | Automatic Pile Turner And Stacker Machine |
| High Speed Automatic Flute Laminating Machine | Automatic Sheet To Sheet Laminating Machine | Flute Laminating Machine Spare Parts |
| Servo Automatic Flute Laminating Machine | Semi Automatic Flute Lamination Machine | Film Laminating Machine |
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of folder gluer and flute laminating machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
