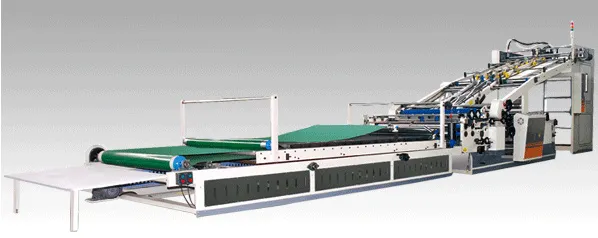

Automatic Corrugated Sheet Flute Laminating Packaging Machine
Automatic Corrugated Sheet Flute Laminating Packaging Machine1.This machine is the forth generation new product , it is easy operation , convenient maintain , high speed , low noise , high precision and take competed market.2.The spare parts and computer controller are from Japan and Germany to make......
Send Inquiry
Product Description
1.This machine is the forth generation new product , it is easy operation , convenient maintain , high speed , low noise , high precision and take competed market.
2.The spare parts and computer controller are from Japan and Germany to make sure the precision and using life.
3.BZJ series laminating machine adopts.
4.It is used to laminate corrugated cardboard , when the machine is working in high speed , it can be normal to process 3/5/7 ply and A/c/b/D/E/F/N corrugated , the cardboard after laminating is nice and high precision.
Machine name | Automatic Laminating Machine Details | ||
Size | BZJ- 1300 | BZJ-1450 | BZJ- 1600 |
Max laminating size | 1300mm*1100m | 1450*1100mm | 1600mm*1100mm |
Min laminating size | 350mm*350mm | 350mm*350mm | 350mm*350 |
Mechenical speed | 0-100/min | 0-100/min | 0-100/min |
power | 12kw | 12kw | 12kw |
machine overal size:(length*width*height) | 12.5m*2.15m*2.6m | 12.5m*2.30m*2.6m | 12.5m*2.45m*2.6m |
machine weight | 6.8T | 7.2T | 8.0T |
Paper requirement | Bottom paper:Min 350g/,Max 800g/,Max thickness:10mm Facer paper:Min 180g/,Max 800g/ | ||
items | original | remarks | |
AUTO FEEDER | Beijing | Adsorption type bottom paper feeding, running balance and accurate.Photoelectric control, avoid single sheet moving phenomenon. The machine adopts front regulation position: error range + / - 1.0 mm . Card paper and corrugated paper joint error range in + / - 1.5 mm | |
Approach sensor | Japan OMRON | ||
Bearings | NSK | ||
PLC | Panasonic | ||
frequency converter | Delta | ||
Touch screen LCD Monito | Shenzhen | ||
Timing belt | USA GATES | ||
conveyor belt | Italy | ||
Main Chain | Jpan | ||
Clutch | Taiwan | ||
Limit position regulation | Japan | ||
Main motor | Shanghai | ||
Speed reduce motor | Taiwan | ||
Adsorption belt | Japan | ||
Contactor | Schneider | ||
Botton | DELIXI | ||
water level relay | Taiwan | ||
Vaccum Pump | Shanghai | ||
Vortex pump | Zhejiang | ||
Packaging & Shipping

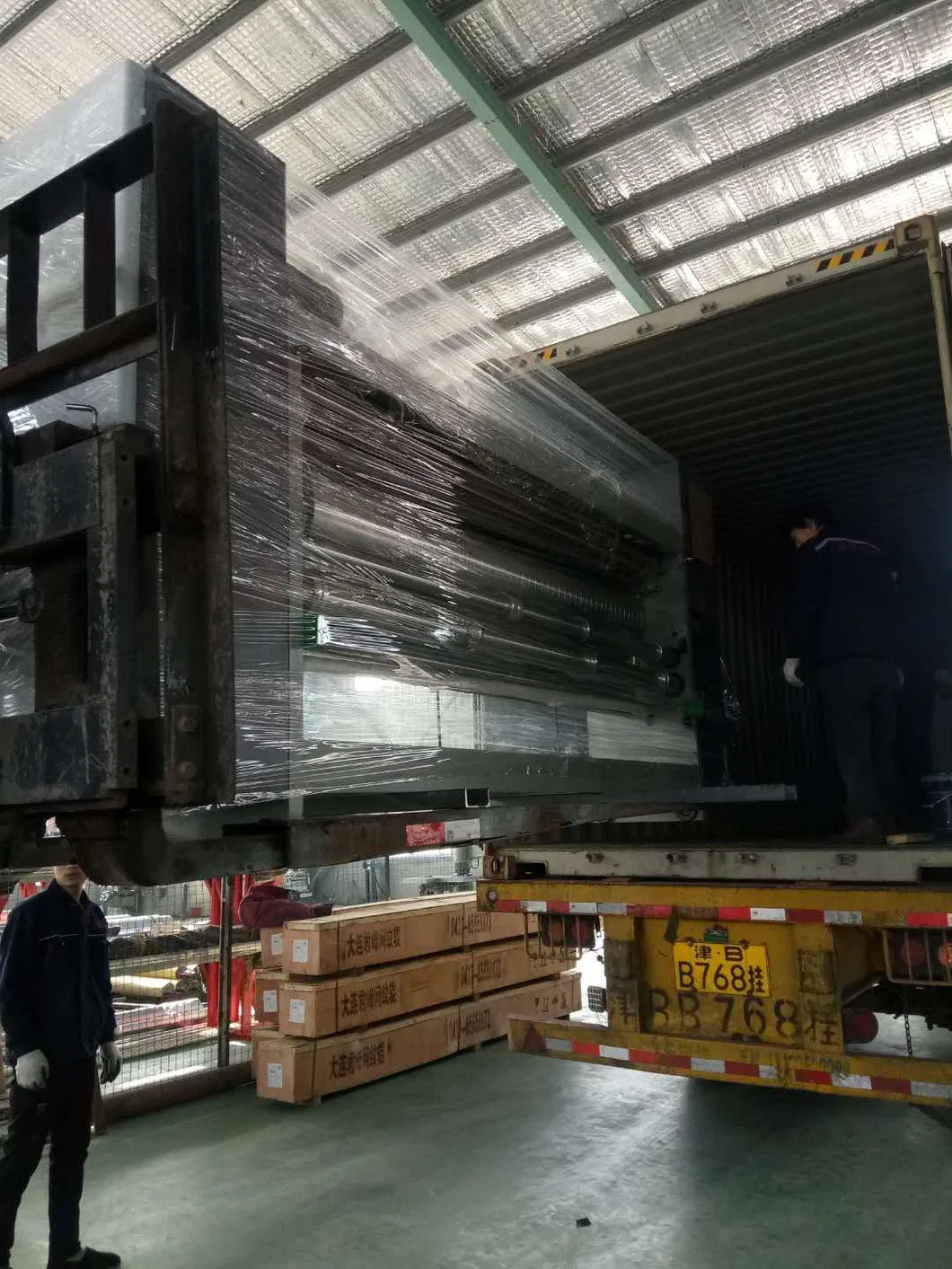

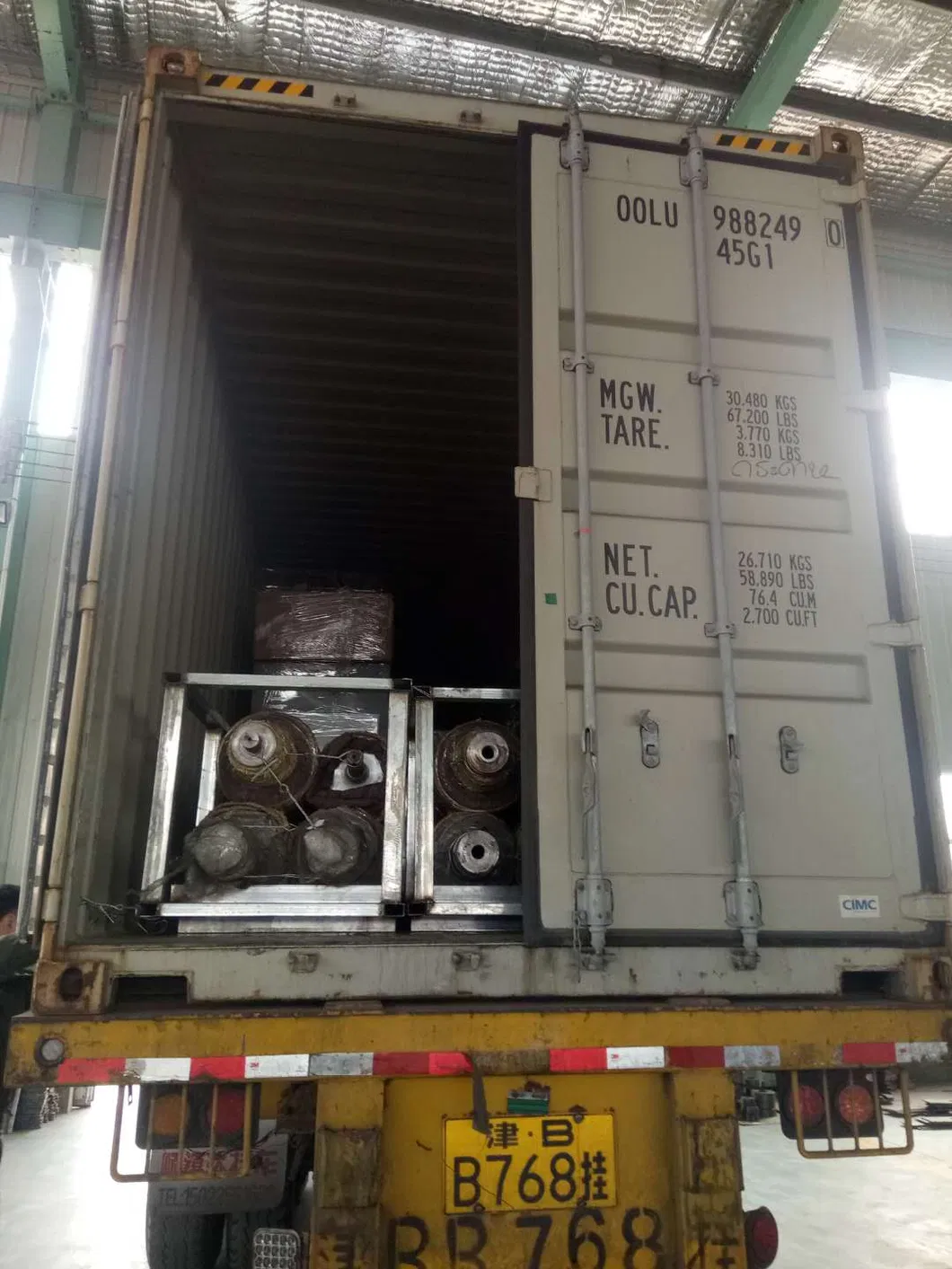

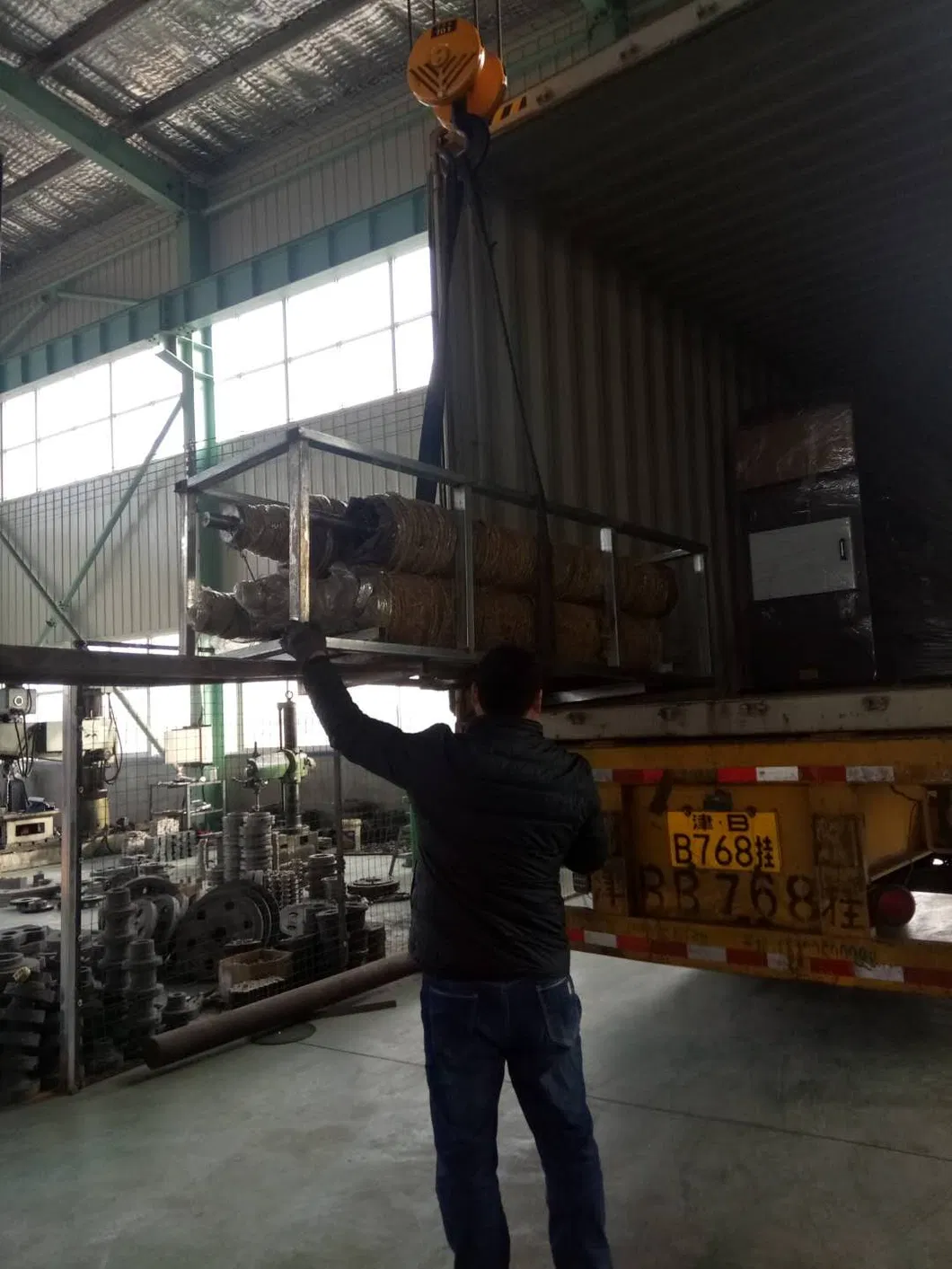

After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
Contact Information:
If you are interested in our products,
please fell free to contact and visit me.
You are welcome all the time!
Mobil:0086 18713707985
ABOUT US:

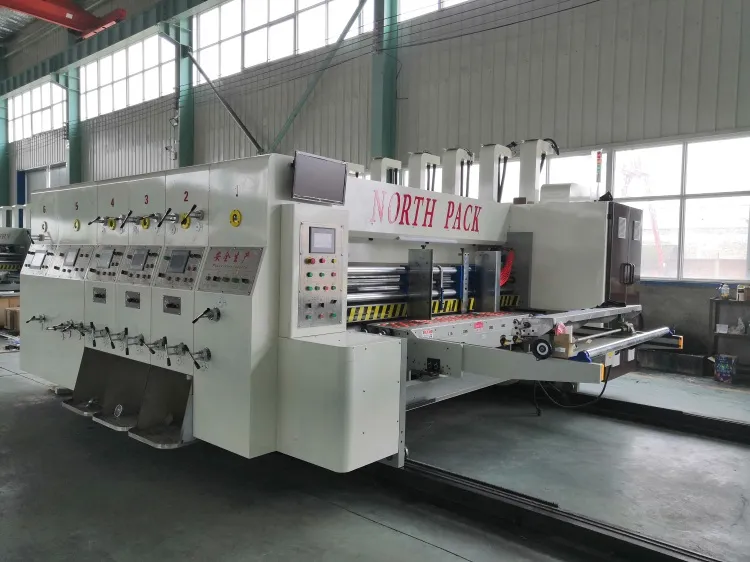

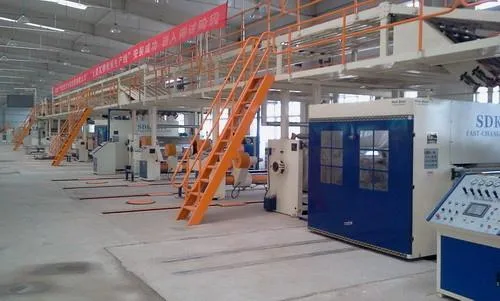

Hebei Dongguang North Pack Co.,Ltd is located in Hebei Province Dongguang County, Packaging Machinery Industry Area. We are specialized in the production of Carton packaging Machinery . We have advanced production processing equipment and high-quality technical and management personnel. Mainly produces3/5/7 layer Corrugated Cardboard Production Line, medium and high speed FLEXO Ink Printing Machine, Slotting Machine, Die-cutting Machine, Stitching Machine, Gluing Machine, stitching machine and other related series equipment. Our company has the import and export rights, products have been exported to Russia, Iran, Turkey, Egypt, India, Pakistan, the United Arab Emirates, Mesico, Brazil and other countries and regions.
