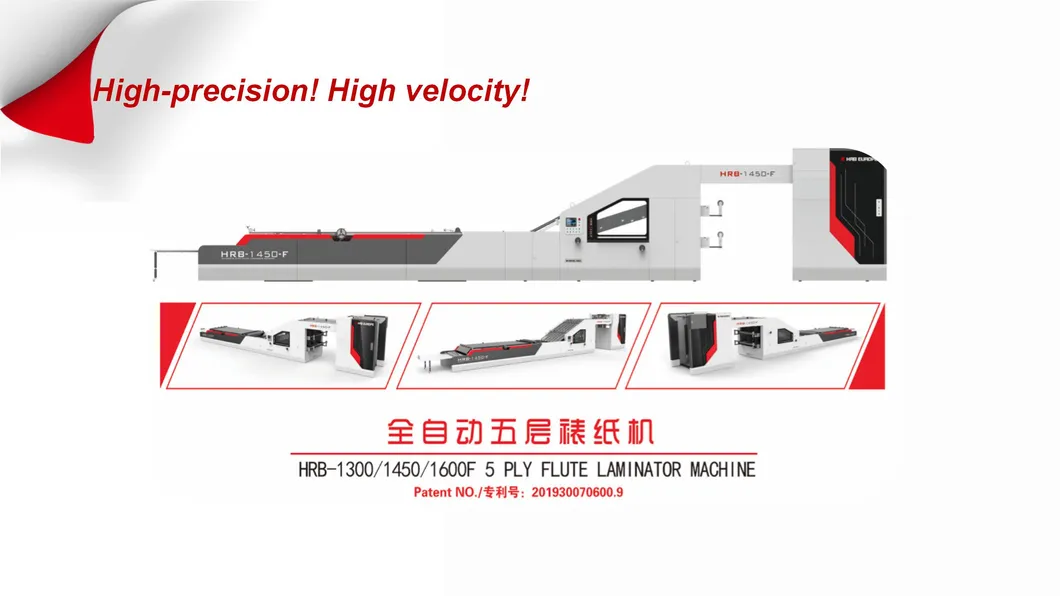

Automatic 5 Ply Flute Laminator Machine Corrugated Carton Flute Laminating Machine
Automatic Five Ply Corrugated Carton Box Flute Laminator MachineProduct Description :HRB-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double ......
Send Inquiry
Product Description
Product Description :

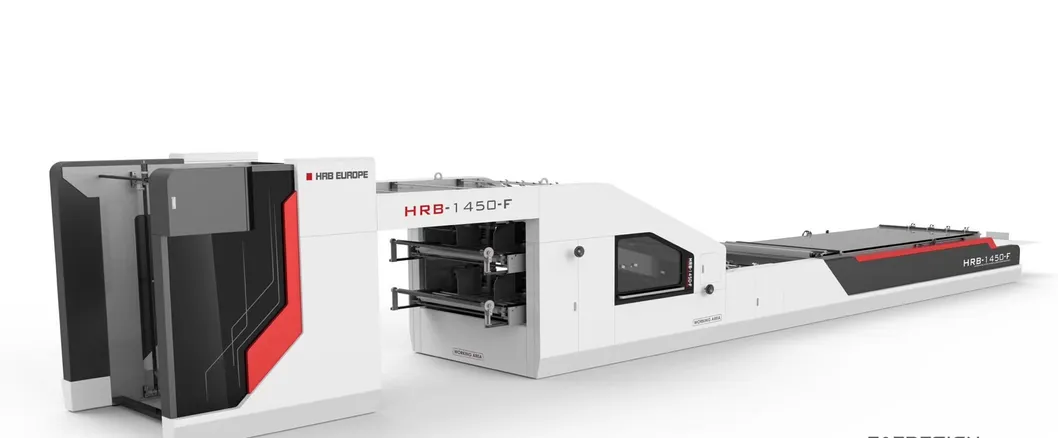

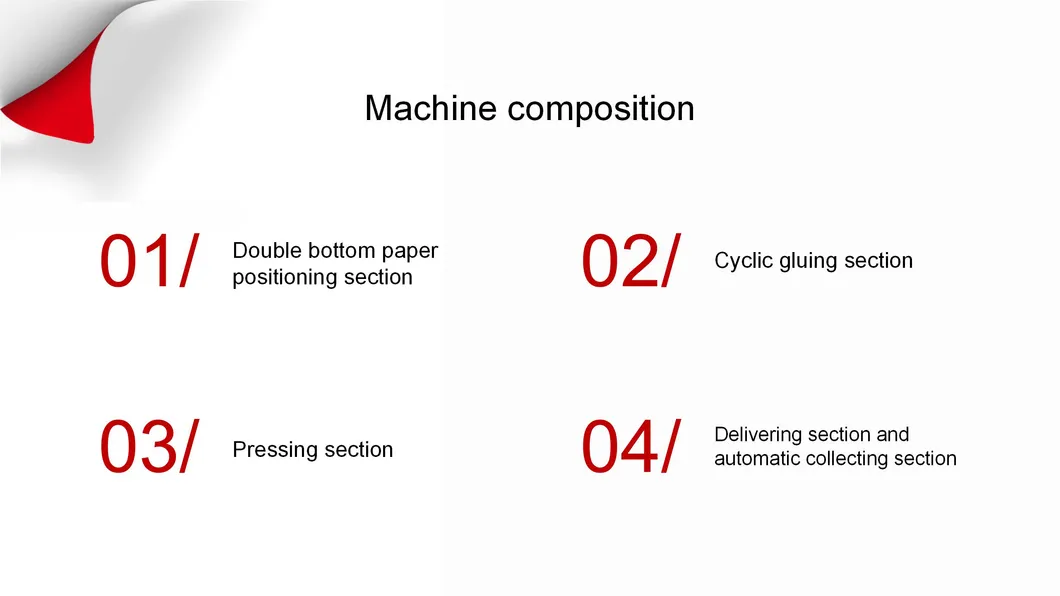

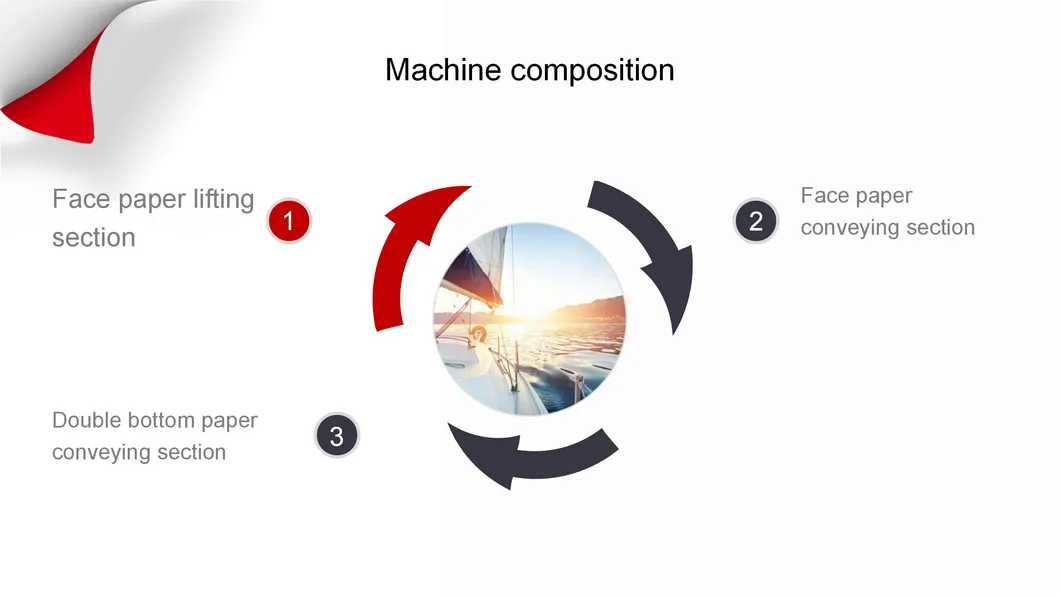

HRB-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section.

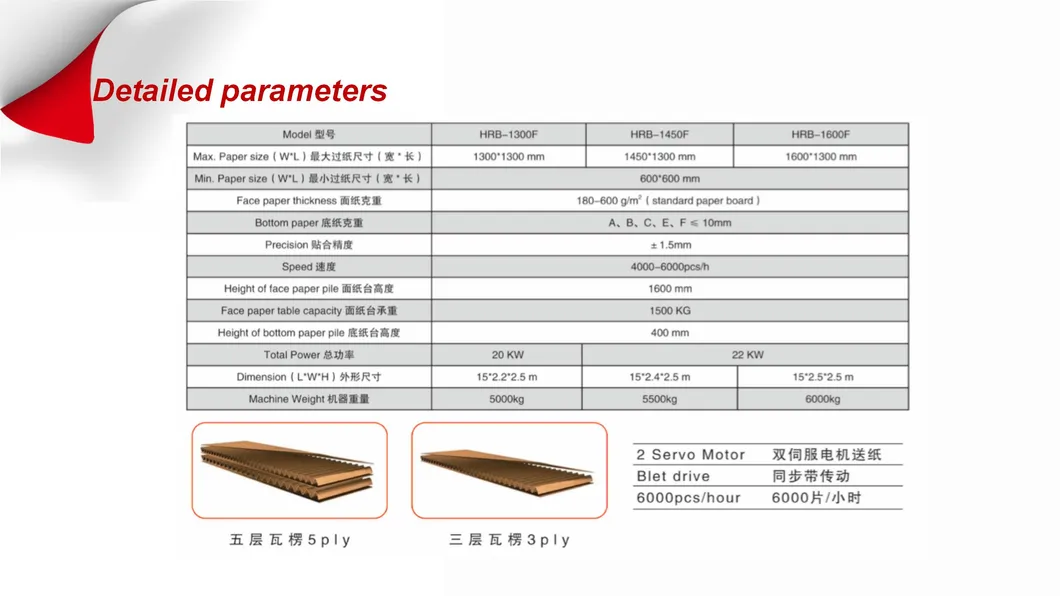

Specification Table :
| Model | HRB-1300F | HRB-1450F | HRB-1600F |
| Max.Paper size (W*L) | 1300*1300mm | 1450*1300mm | 1600*1300mm |
| Min.paper size (W*L) | 600*600mm | ||
| face paper thickness | 180-600g/m²(standard paper board) | ||
| Bottom paper | A B C E F Less than or equal to10mm | ||
| Precision | ±1.5mm | ||
| Speed | 4000-6000pcs/h | ||
| Height of face paper pile | 1600mm | ||
| Face paper table capacity | 1500KG | ||
| Height of bottom paper pile | 400mm | ||
| Total Power | 20KW | 22KW | |
| Dimension (L*W*H) | 15*2.2*2.5m | 15*2.4*2.5m | 15*2.5*2.5m |
| Machine Weight | 5000kg | 5500kg | 6000kg |
Product characterist :

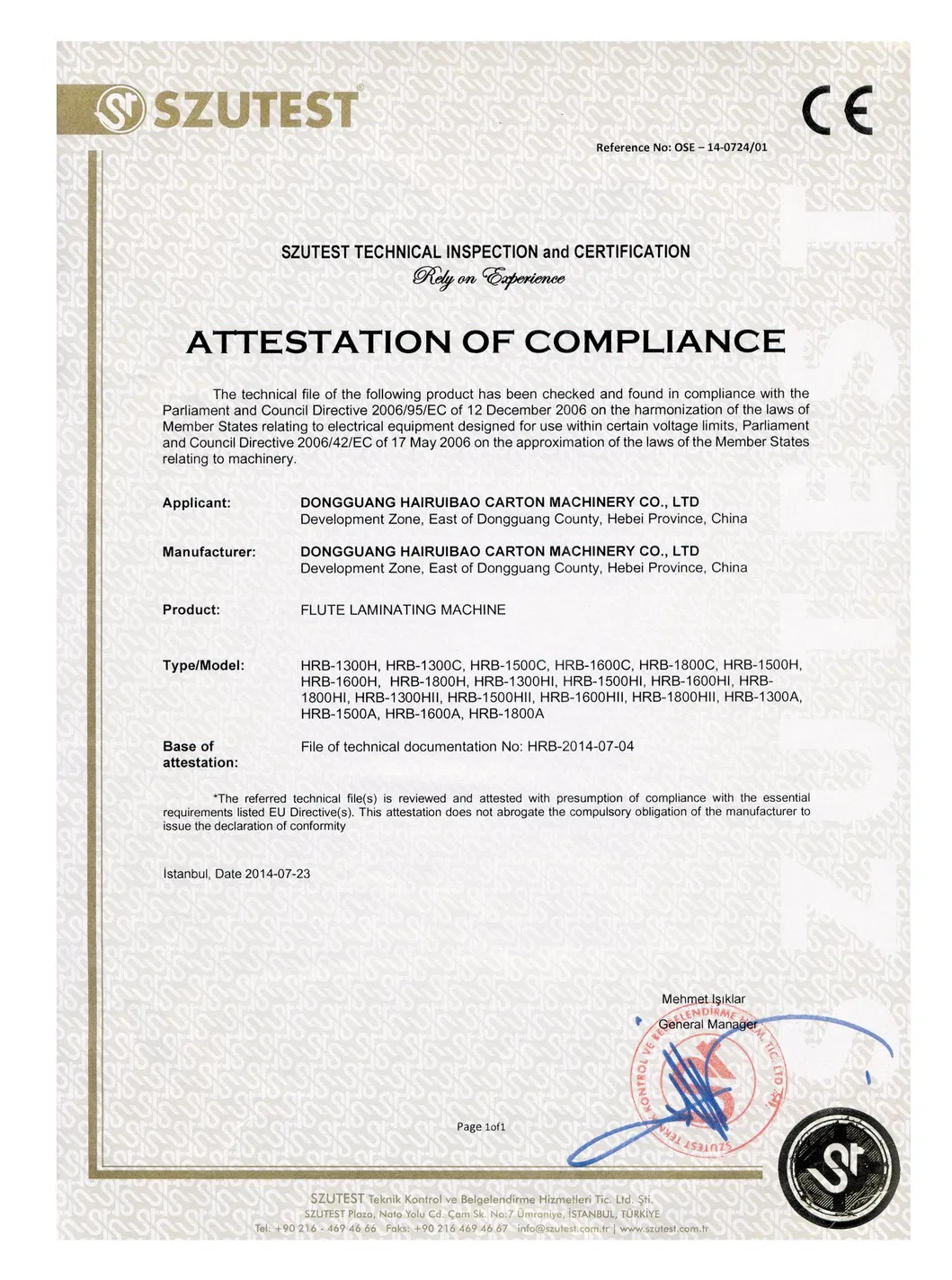

CE Certifications :

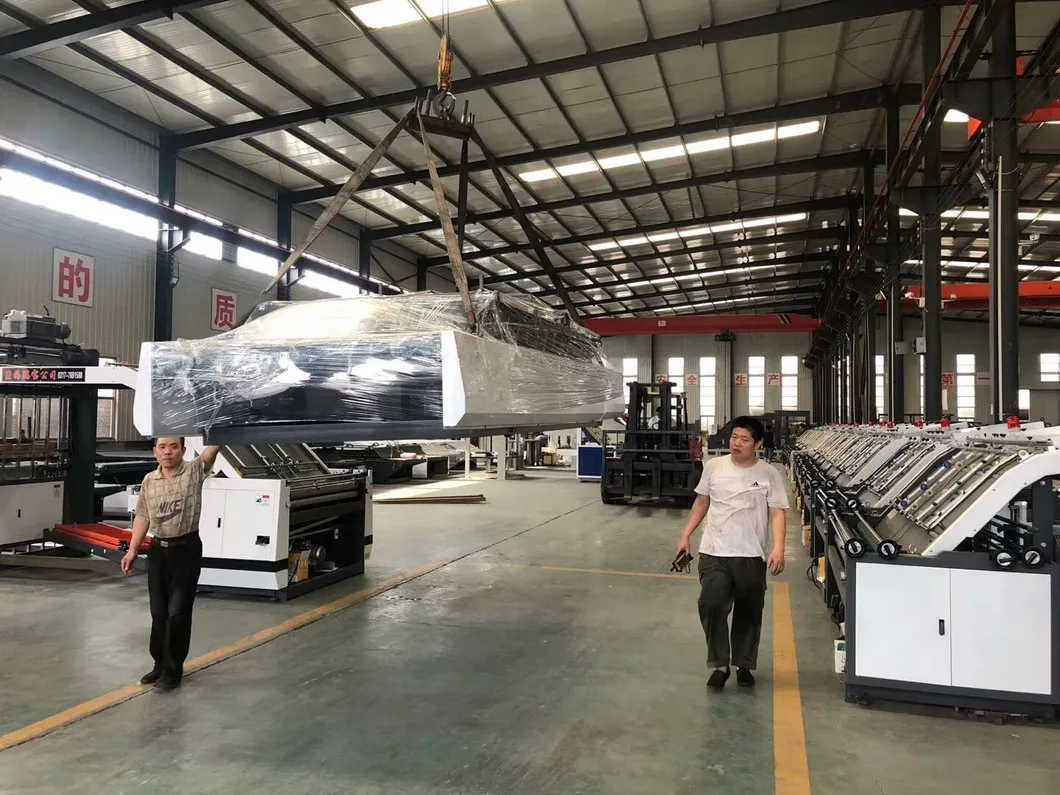

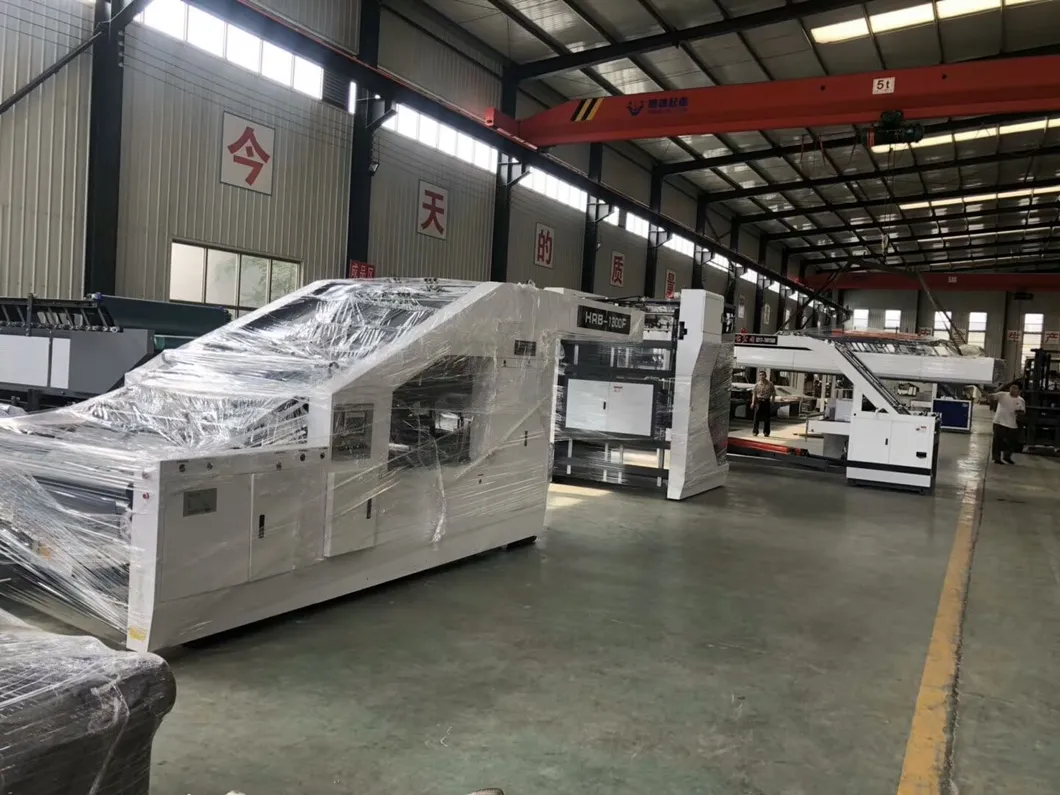

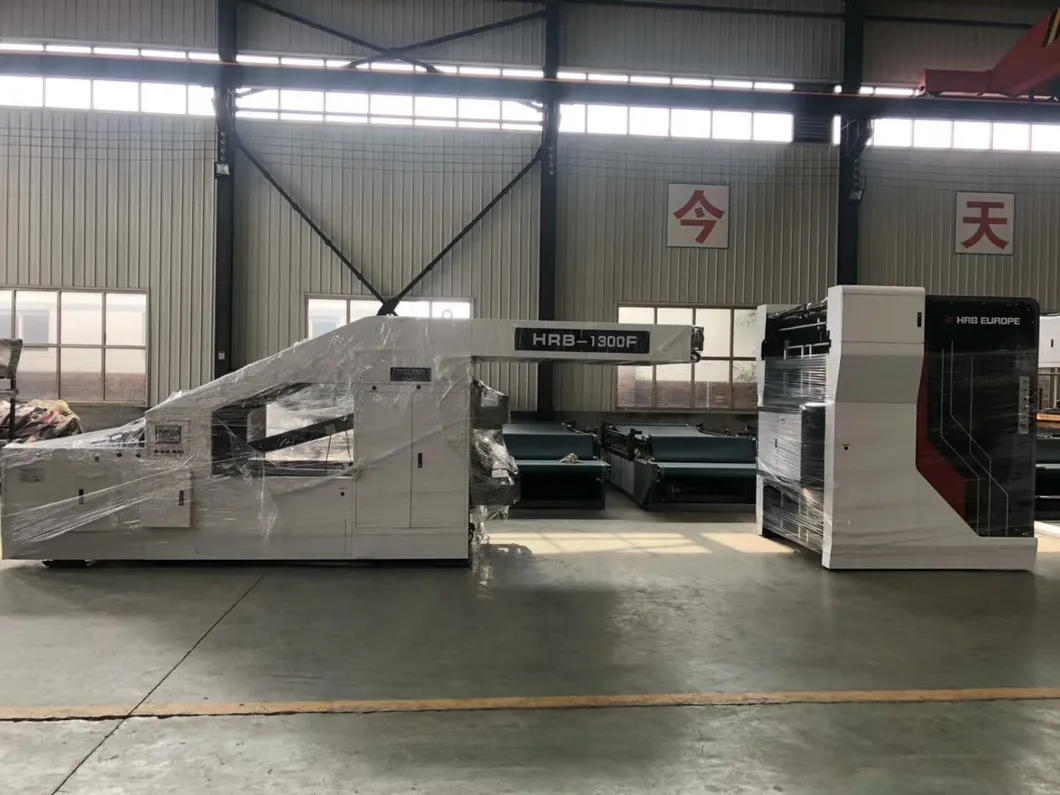

Packaging & Shipping :
FAQ :
Q:Are you manufacture or trading company?
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company , so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
Q. Do you have Import & export right?
A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency.
