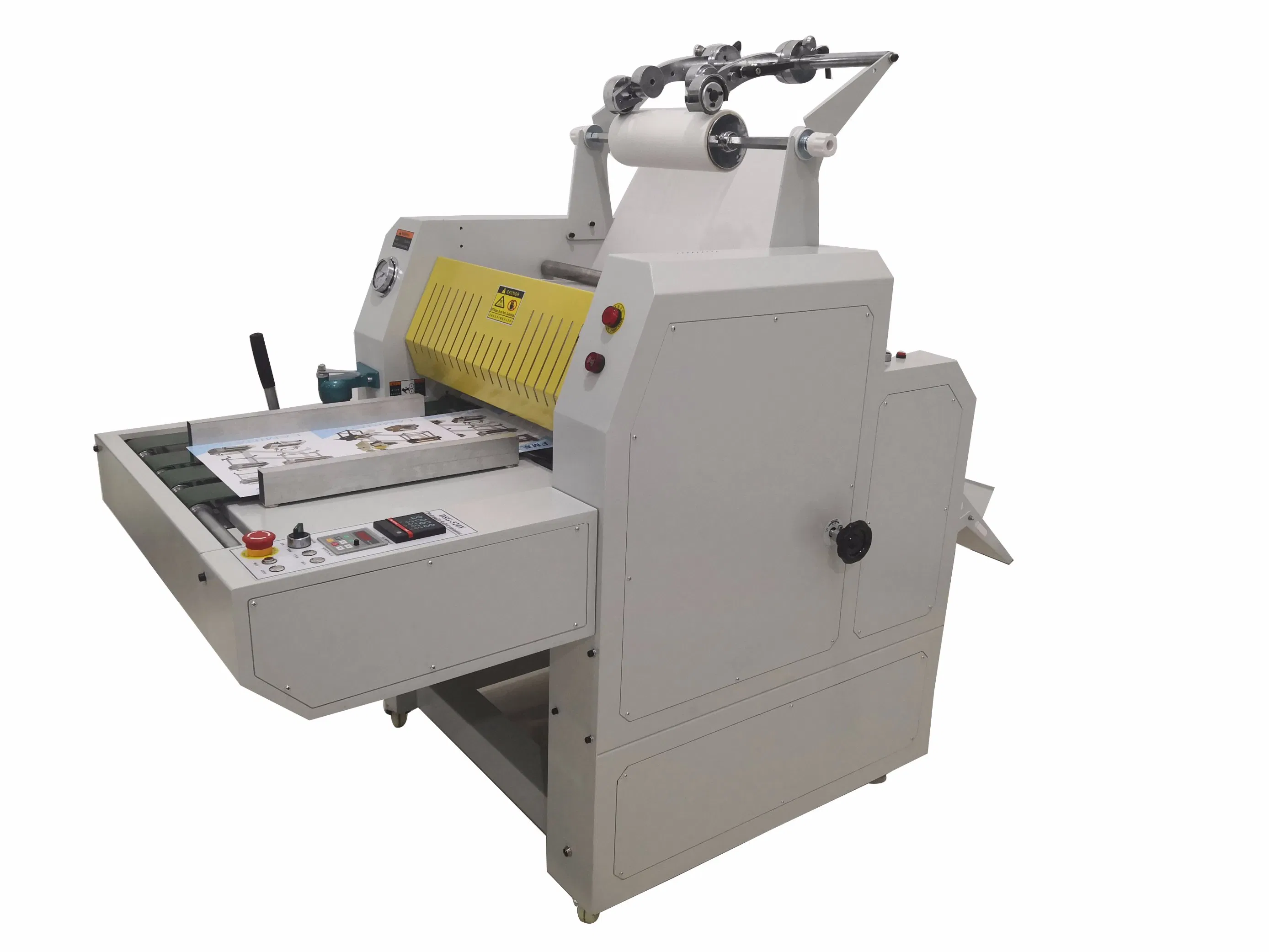

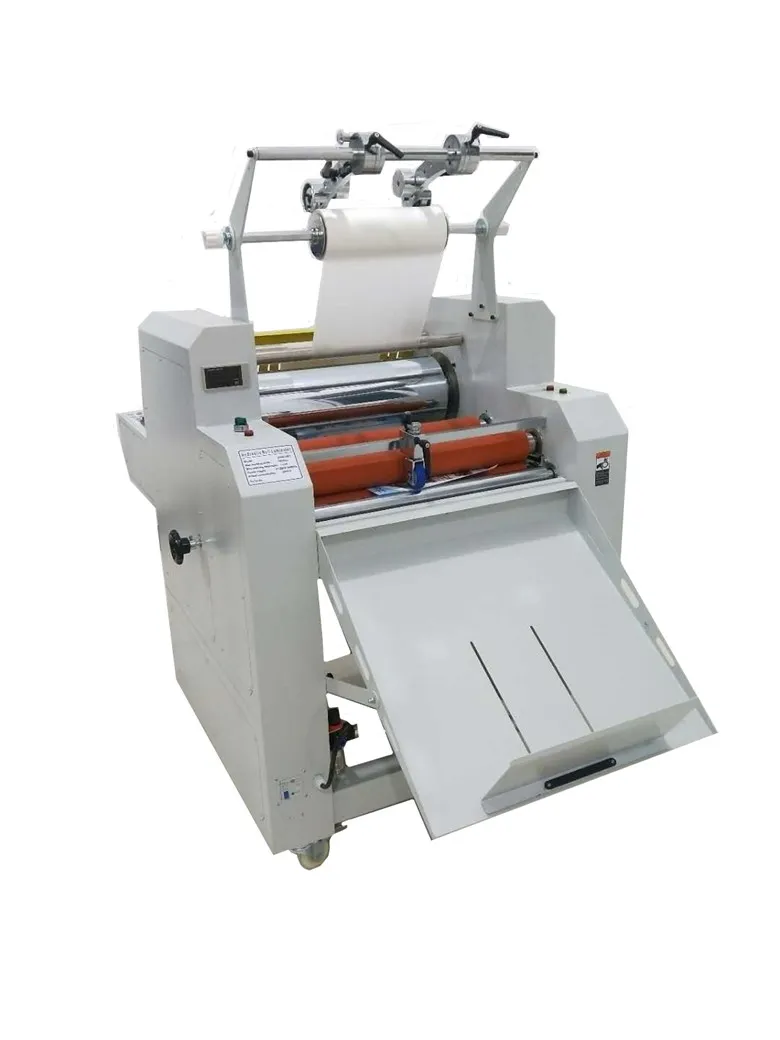

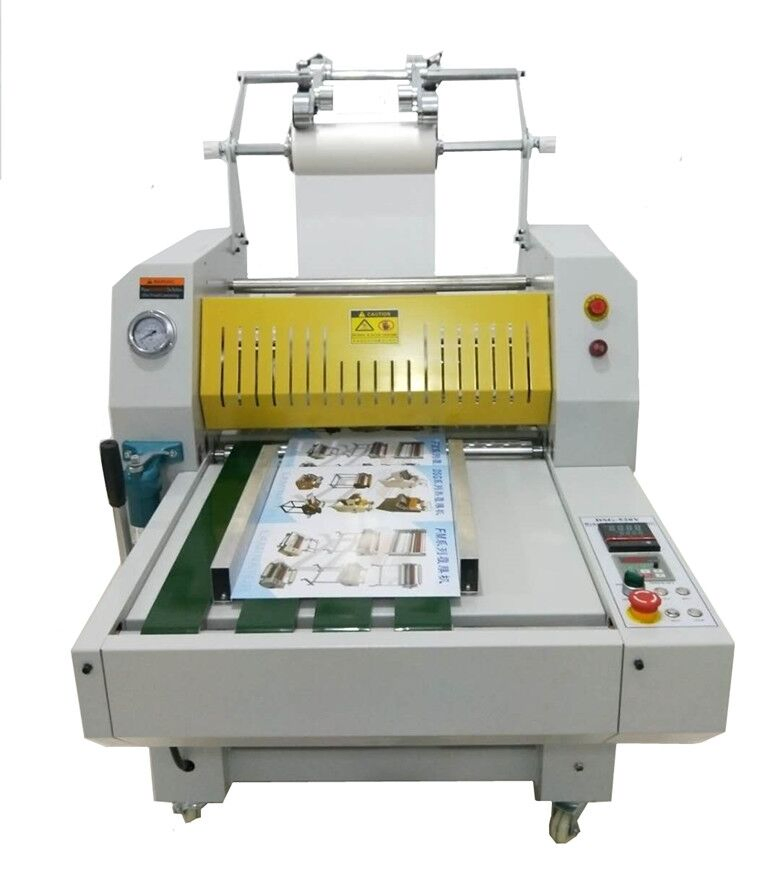

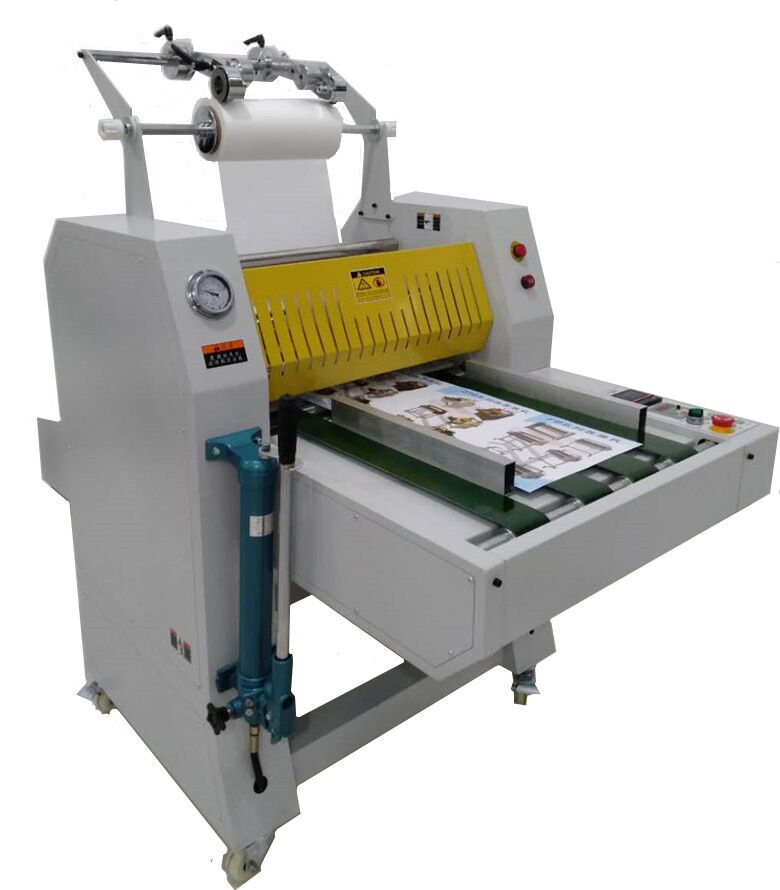

520mm Hydraulic Hot Laminator with Automatic Pueumatic Cutter Hl-520ya
520MM HYDRAULIC HOT LAMINATOR WITH AUTOMATIC PUEUMATIC CUTTER( HL-520YA)The laminator is widely used by medium and small enterprises,Copy center and schools .Product introduction: HY-520YA is semi-automatic laminator machine.1.It have large enrance width 520MM to meet more needs;2. Infrared heati......
Send Inquiry
Product Description
520MM HYDRAULIC HOT LAMINATOR WITH AUTOMATIC PUEUMATIC CUTTER( HL-520YA)
The laminator is widely used by medium and small enterprises,Copy center and schools .
Product introduction:
HY-520YA is semi-automatic laminator machine.
1.It have large enrance width 520MM to meet more needs;
2. Infrared heating,Intelligent temperature control:It automatically alarms when the temperature exceeds 140 degrees Celsius.
3.It adopts the designs of manual feeding but automatic lamination , auto paper winding and auto-pheumatic cutter and collect.
4.Manual hydraulic control, shockproof display table:provides big pressure to guarantee good laminating quality.
5.Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality .
6.Electric adjustment single side anti - crimp function.
The laminator is widely used by medium and small enterprises,Copy center and schools .
Product introduction:
HY-520YA is semi-automatic laminator machine.
1.It have large enrance width 520MM to meet more needs;
2. Infrared heating,Intelligent temperature control:It automatically alarms when the temperature exceeds 140 degrees Celsius.
3.It adopts the designs of manual feeding but automatic lamination , auto paper winding and auto-pheumatic cutter and collect.
4.Manual hydraulic control, shockproof display table:provides big pressure to guarantee good laminating quality.
5.Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality .
6.Electric adjustment single side anti - crimp function.
Product parameters:
| Laminating speed : | 0~15 meter/min |
| Max Lamianting temperature : | 140 Degree |
| Heating power : | 4300W |
| Power supply | AC 110/60HZ or 220V ,50HZ |
| Motor Power | 400W |
| Heating Method | Infrared Heating by hot air |
| Steel roller | 200MM |
| Rollers | 150MM |
we also supply comb binding machine, wire binding machine, spiral binding machine, interchangabel punch machine, creasing machine, laminator,shredder,glue binding machine, binding accessories...20 years experience for binding machine and laminator .....
