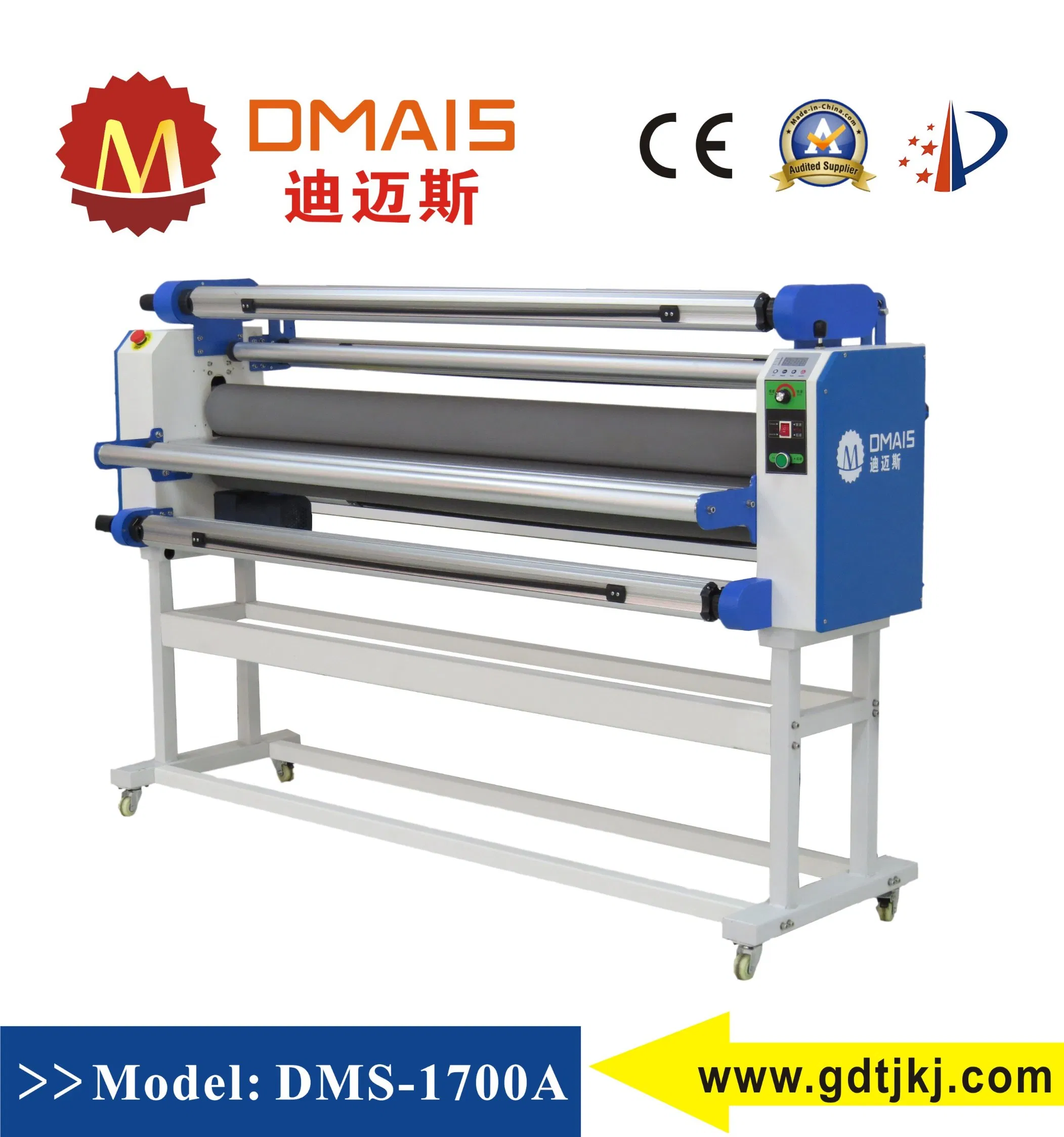

1700mm Large Format Liner and Linerless Film Hot Sale Low Temperature Laminator
1700mm Large Format Liner and Linerless Film Hot Sale Low Temperature LaminatorTechnical ParametersModel NumberDMS-1700ASpeed Gear ControlingVariableNominal Voltage110V/220VMaximum roll film OD200mmPower200WThe diameter specification of Roll film 3 inchesHeating Power1500WThe raise height of roller3......
Send Inquiry
Product Description
1700mm Large Format Liner and Linerless Film Hot Sale Low Temperature Laminator
Technical Parameters
Equipment Features

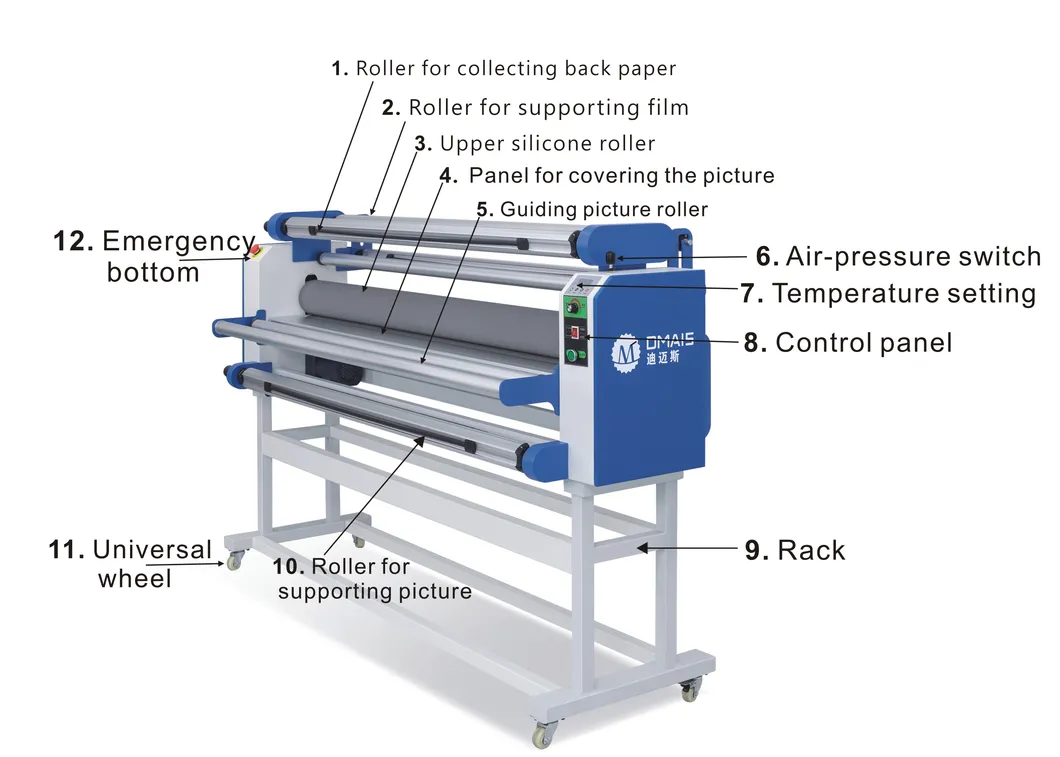

1.Unique method of putting film from the back, easily operate.
2.Unilateral linkage , up and down easily.
3.Three laminating ways: auto/foot control/manual.
4.Stepless speed regulation.
5.With reversing function.

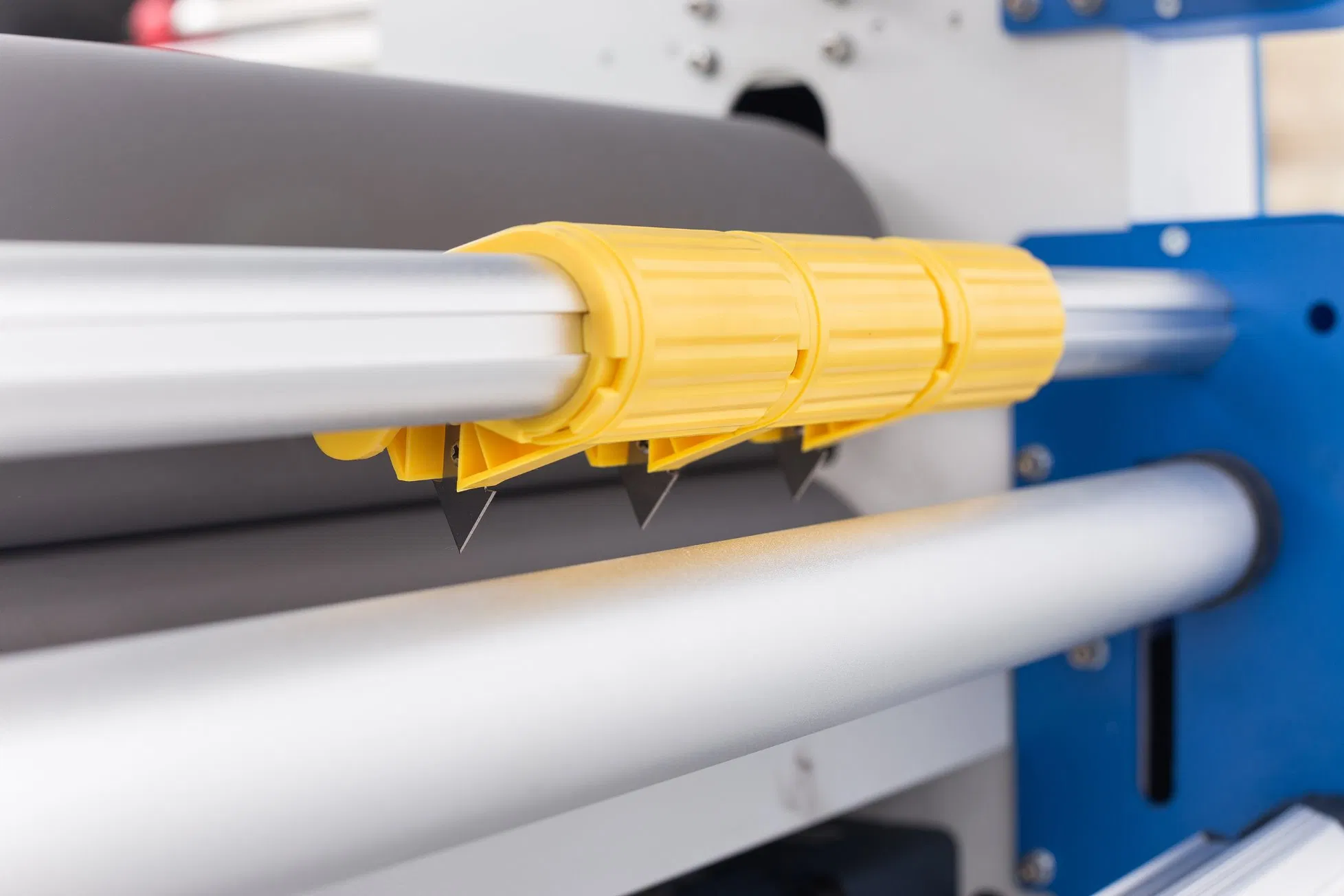

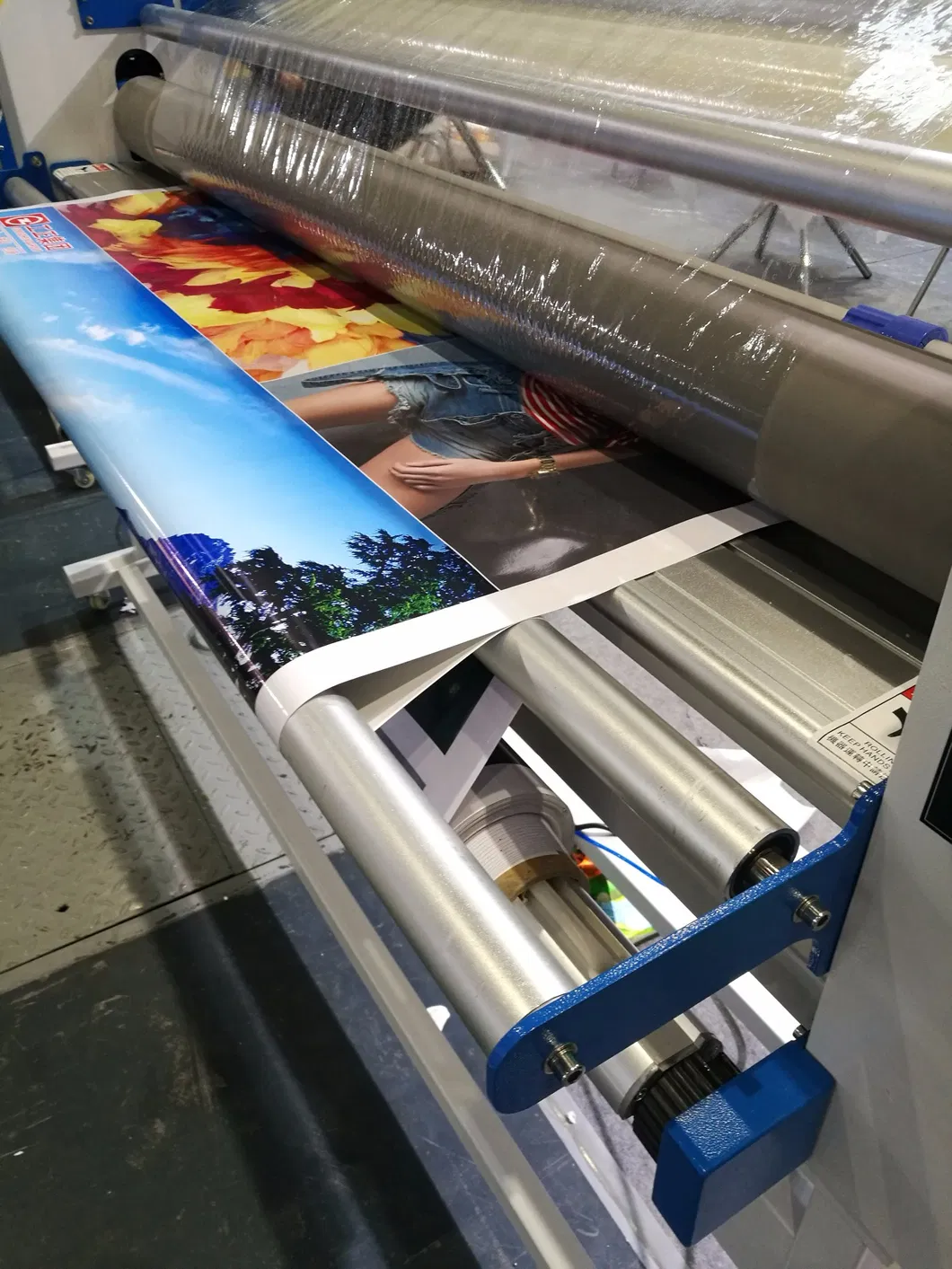

6. Uncovering backing paper and finishing products automatically.
7. Only need one person to operate, save cost.
8.Heating to 60ºC to avoid bubble thoroughly.
9. High efficiency and high yield of laminating, whole film of 50m don't bevel.
10. Film and paper tightness-degree system make the cold lamination have good tension, reduce the risk of laminating fold.
11.Infrared ray control temperature, much precise to control temperature.
Technical Parameters
| Model Number | DMS-1700A | Speed Gear Controling | Variable |
| Nominal Voltage | 110V/220V | Maximum roll film OD | 200mm |
| Power | 200W | The diameter specification of Roll film | 3 inches |
| Heating Power | 1500W | The raise height of roller | 30mm |

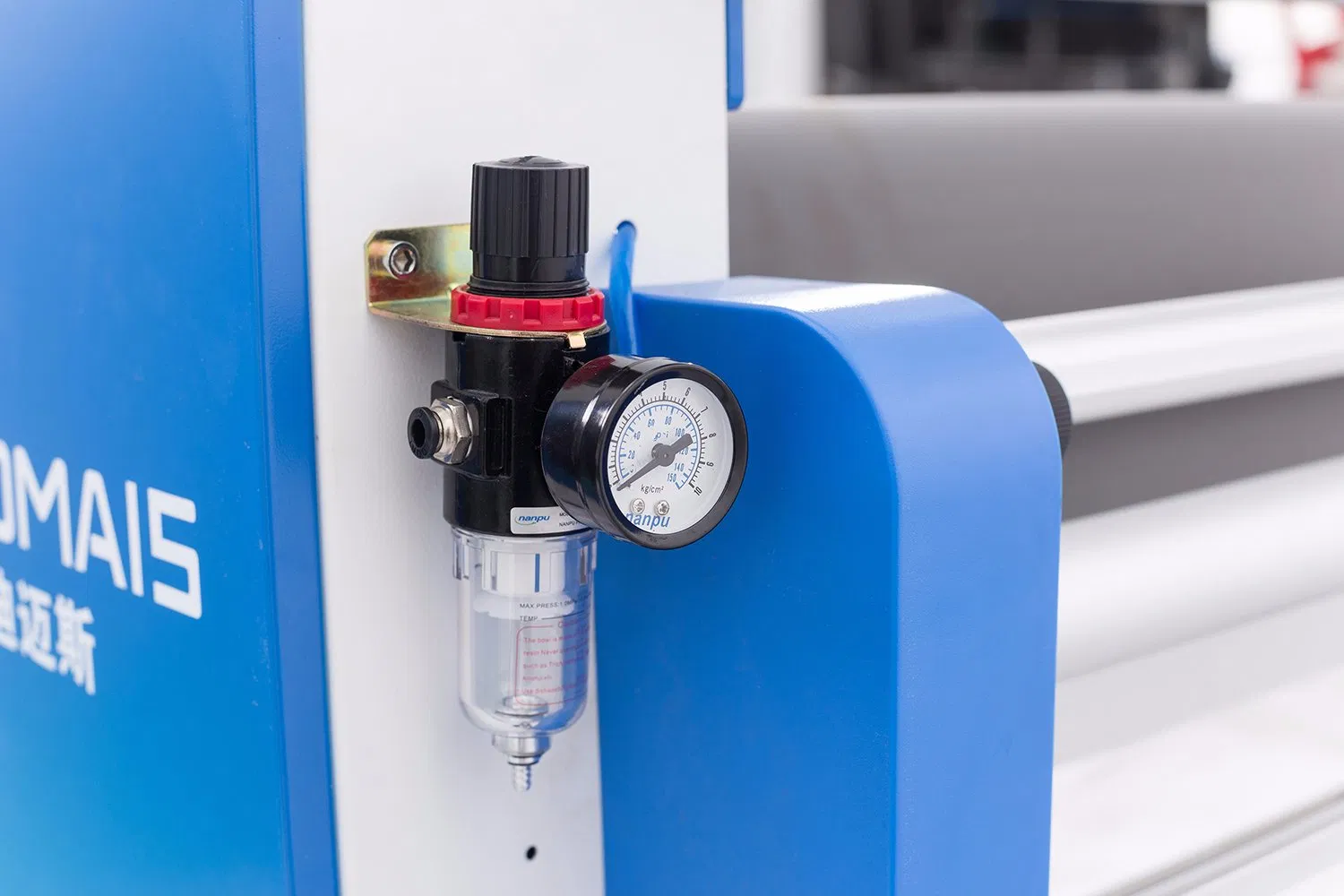

| Frequency Respons | 50HZ-60HZ | Method of pressure adjustment | Pneumatic |
| Operating Temperature | 0ºC-60ºC | Automatically uncovering film androlling body paper equipment | Motor |
| Scope Of Suitable Film Tthickness | 10-250μm | Foot-propelled switch | Yes |
| Warm-up Time | 0-10/Min | Diameter of roller | 130mm |
| Laminating Width | ≤1650mm | Weight | 260kg |
| Laminating speed | 0-10m/Min | Product Size(mm) | 2000×660×1300 |
| Laminating Thickness | 28mm | Packing Size(mm) | 2100×630×670 |
Equipment Features
1.Unique method of putting film from the back, easily operate.
2.Unilateral linkage , up and down easily.
3.Three laminating ways: auto/foot control/manual.
4.Stepless speed regulation.
5.With reversing function.
6. Uncovering backing paper and finishing products automatically.
7. Only need one person to operate, save cost.
8.Heating to 60ºC to avoid bubble thoroughly.
9. High efficiency and high yield of laminating, whole film of 50m don't bevel.
10. Film and paper tightness-degree system make the cold lamination have good tension, reduce the risk of laminating fold.
11.Infrared ray control temperature, much precise to control temperature.
